Food & Beverage

21/08/2023

NICHIAS products are used in various parts of food & beverage production plants (as well as in the utility plants which provide local energy sources).



Product solutions supplied by NICHIAS vary from fluoropolymer pliable high temperature and high pressure hoses used for transferring materials from a delivery vehicle to storage tanks, to PTFE covered rubber gaskets (sanitary use gasket) which provide anti-flavouring properties in product filling lines, to pliable PTFE hoses with smooth inside surface minimising any liquid stagnation and allowing installation in confined spaces, to reusable flexible heat insulation materials used as insulation material for valves in support utility plants.

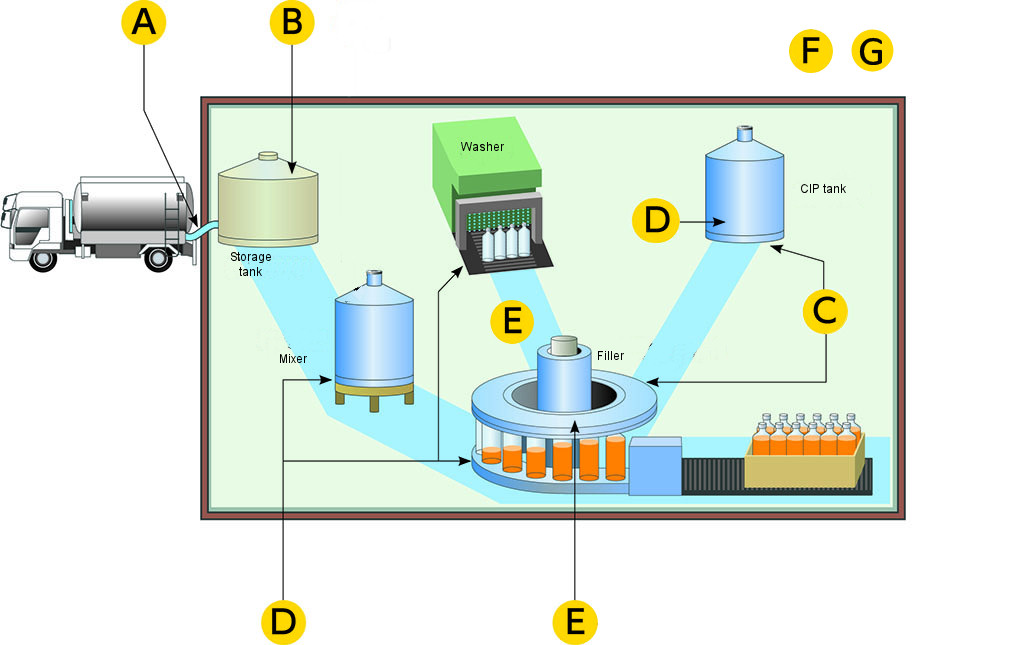

Picture Description  Application Industry

(A) Fluoropolymer Pliable Hose

NAFLON™ PTFE Super Pliable Hose

This product consists of a PTFE pliable hose reinforced with a wire braid around the outer surface. It can withstand high-temperature, high-pressure environments and is used for hoses for transferring materials from a delivery vehicle to a storage tank.

  Food & Beverage

(B) Fluoropolymer Chemical Tank Lining

-    Fluoropolymer tank lining
-    Vessel accessory
-    ETFE/PFA roto lining
-    NAFLON™ PFA roto molded tank
-    NAFLON™ coating

Tanks, corrosion-resistant lined pipes, tubes, and gaskets for storing raw materials.

Used for Storage Tank Food & Beverage

(C) Fluoropolymer Hose

NAFLON™ Straight Hose

The fluoropolymer hose, which has high resistance to chemicals

-    Sanitary Applications
-    Used in beverage filling lines
-    Used for the hoses for feeding the washing liquid from the CIP tank
Food & Beverage

(D) Sanitary Use Gasket

9014-A/ B/ BW SANICLEAN™ Gasket

A rubber gasket with the added protection of PTFE film. Since the surfaces that come into contact with liquid are entirely covered with PTFE, the gasket is highly resistant to chemicals and contaminants.

-    Used for mixer
-    This gasket is mainly used in product filling lines.
-    Used for CIP tank.
Food & Beverage

(E) Pliable Hose with Smooth Inside Surface

NAFLON™ PTFE Smooth Pliable Hose

This hose is made from a NAFLON™ BT tube with a spiral formed on the outside. Due to its smooth inside surface, stagnation of liquid is minimized. In addition, its small bending radius allows installation in confined spaces.

Used for filler Food & Beverage

(F) Reusable Flexible Heat Insulation Material

4500-PH ENETHERMO™

-    Mainly made of glass fiber. Due to its excellent waterproofing performance and flexibility, this reusable insulation material can be applied to complex saped equipment.
-    The detachable material allows easy maintenance while achieving energy saving in the plant

It is mainly used as insulation material for valves in utility lines. Food & Beverage

(G) Functional Decorative Calcium Silicate Board (antibacterial type)

6462 ASLUX™ 200K

The base material of the non-flammable board is a calcium silicate panel, the surface of which undergoes a special treatment and sanding, and then is coated with antibacterial acrylic urethane resin. Because this is an antibacterial type board, it is used for the inner walls in food plants where antibacterial properties are required.

  Food & Beverage
