Processed Products

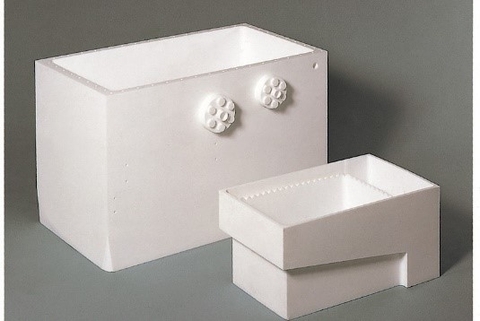

Fluoropolymer containers
Fluoropolymer containers for storing and conveying high-purity chemicals, semiconductor etching tanks, and cleaning tanks in semiconductor fabricating processes.
Product Code | Product Name | Description | Application | Data Sheet |
---|---|---|---|---|
Tombo No. 9500-M, 9500-H | NAFLON™PTFE sink |
PTFE Tombo No.9500-M: a seamless “one-piece molded square sink” |
Chemistry & Petrochemistry Chemistry Electronics Semiconductors & Flat Panel Displays (FPD) |
N/A |
Tombo No. 9947 | NAFLON™PFA Roto molded container | PFA Excellent heat and pressure resistance The standard products are 2L, 3L, 5L, 8L, 15L, 50L, and a 100L model |
Chemistry & Petrochemistry Chemistry Electronics Semiconductors & Flat Panel Displays (FPD) |
N/A |

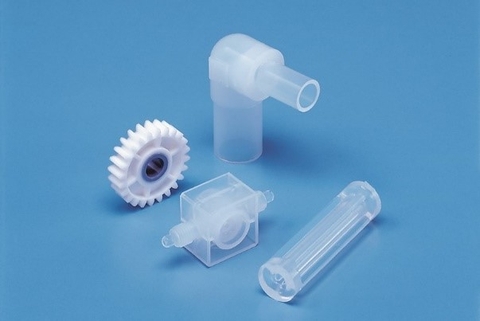

Processed and Molded products
Fluoropolymers and various types of super-engineering plastics that are welded, machined, injection-molded, or fused using state-of-the-art techniques to produce parts for semiconductor and liquid crystal fabricating equipment, pumps and valves.
Product Code | Product Name | Description | Application | Data Sheet |
---|---|---|---|---|
Tombo No. 9020 | NAFLON™machined product |
PTFE, PFA, PVDF, PCTFE, etc Oil resistance, chemical resistance, and electrical insulation properties |
Electronics Semiconductors & Flat Panel Displays (FPD) |
N/A |
Tombo No. 9021 | NAFLON™injection molded product | PFA, ETFE, PVDF, PPS, PEEK, PEI, PES, PBI | Electronics Semiconductors & Flat Panel Displays (FPD) Healthcare and Medicine Medical Equipment Suitable for the mass production of pumps, valve parts, semiconductor and FPD manufacturing equipment parts, and electronic components |
N/A |
Tombo No. 9023 | NAFLON™welded product | PTFE, PFA, PVDF | Parts for semiconductor or FPD manufacturing equipment | N/A |

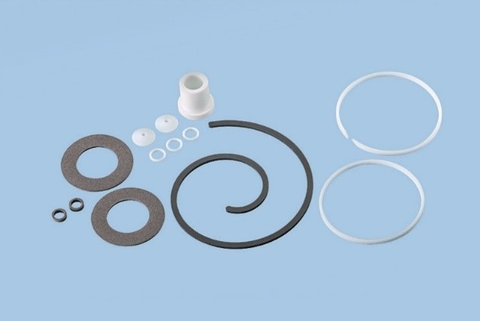

Sliding materials
Fluoropolymers, particularly PTFE, are used in various applications, such as for bearing sealing materials, thanks to their outstanding low-friction and self-lubricating properties. Types with improved wear resistance and mechanical strength are also available, which are produced by adding various fillers.
Product Code | Product Name | Description | Application | Data Sheet |
---|---|---|---|---|
Tombo No. 9550, 9551 | EXCELIDE |
PTFE/PPS bearing Excellent friction properties |
Service temp: 260°C for PTFE series and 240°C for PPS series Tombo No. 9050 |
N/A |

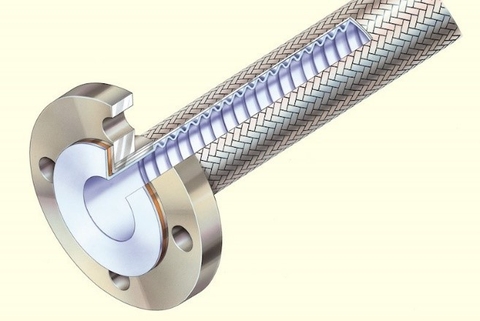

Naflon hose
NAFLON hoses consist of a NAFLON inner hose made of an excellent heat- and chemical-resistant fluoropolymer. These products can be further modified to meet the requirements of particular applications by reinforcing the outside of the tube with protective stainless steel wire braiding and fitting designated metal or flared connections. The main applications are joints in piping systems for steam, oil (especially nonflammable oil), gases, chemicals and foods.
Product Code | Product Name | Description | Application | Data Sheet |
---|---|---|---|---|
Tombo No. 9065/9066/9067/9068 | Fluoropolymer hose | PTFE, PFA NAFLON tube inside Excellent heat- and chemical-resistant |
Chemistry & Petrochemistry Oil Refining & Petrochemistry Various Plant Facilities Piping Suitable for a pipe joint for steam, oil (particularly non-flammable oils), various gases, chemical solutions, and foodstuff |
N/A |
