Packings
Valve packings
Valve packing is a sealant that prevents fluid leaks from entering the stem and body of the valve, keeping it contained to the closed system.
| Product Code | Product Name | Description | Application | Data Sheet |
|---|---|---|---|---|
| Tombo No. 2200, 2205 | GRASEAL™ Packing | Expanded graphite | ~ 400°C (in air; oxidizing atmosphere) ~ 1650°C (non- oxidizing atmosphere) |
N/A |
| Tombo No. 2250 | Low Torque Adapter | Lubricated graphite yarn | ~ 400°C (in air; oxidizing atmosphere) ~ 600°C (non- oxidizing atmosphere) |
N/A |
| Tombo No. 2930 | High Guard Packing | Lubricated graphite yarn | ~ 400°C (in air; oxidizing atmosphere) ~ 600°C (non- oxidizing atmosphere) |
N/A |
| Tombo No. 2996-NA | Plastic Graphite Packing - NA | Special fibers + graphite + synthetic rubber | ~ 200°C | N/A |
| Tombo No. 2280-S, 2280-S-SQ | Super Seal | Expanded graphite with SS 316L | ~ 400°C (in air; oxidizing atmosphere) ~ 600°C (non- oxidizing atmosphere) |
N/A |
| Tombo No. 9033, 9034 | NAFLON™ Fiber Packing-T | 100% PTFE fiber | ~ 260°C | N/A |
| Tombo No. 9077 | NAFLON™ Carbon Fiber | Carbon fiber yarn + PTFE dispersion | ~ 300°C | N/A |
| Tombo No. 9041/ 9042 | NAFLON™ Fiber Packing-G | NAFLON™ Fiber Packing-G | ~ 260°C | N/A |
| Tombo No. 9042-OX | NAFLON™ Fiber Packing-G (OX) | Stretched + reinforced PTFE | ~ 260°C | N/A |
| Tombo No. 2940 | Graphite Fiber | Graphite fiber | ~ 400°C | N/A |
| Tombo No. 2788-AF | AL-METAL Packing - AF | Crinkled aluminium foil + special lubricant + graphite | ~ 550°C | N/A |

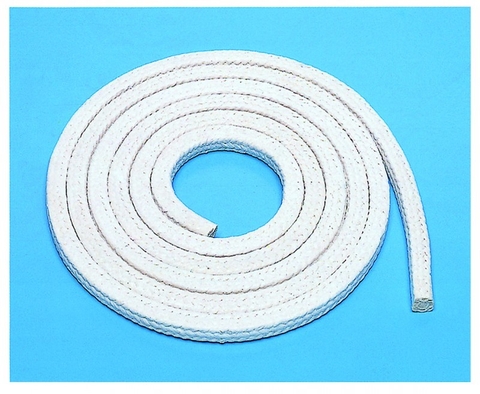

Rotating Equipment
The packings for rotating equipment prevent leakage from the shaft portion of rotating equipment, such as pumps and agitators.
| Product Code | Product Name | Description | Application | Data Sheet |
|---|---|---|---|---|
| Tombo No. 9038 | G-Flon | Graphite filled PTFE yarn | ~ 260°C | N/A |
| Tombo No. 9033, 9034 | NAFLON™ Fiber Packing-T | 100% PTFE fiber | ~ 260°C | N/A |
| Tombo No. 9079 | TOMBO No. 9079 | Flexible cotton yarn + PTFE dispersion + special lubricant | ~ 100°C | N/A |
| Tombo No. 9040 | Aramid Fiber Packing | Polyamide fiber + PTFE dispersion | ~ 260°C | N/A |
| Tombo No. 9040-W, 9040-WR |
NAFLON™ Carbon Fiber | Carbon fiber yarn + PTFE dispersion | ~ 300°C | N/A |
| Tombo No. 9036 | NAFLON™ Fiber Packing (Soft) | PTFE fiber + PTFE dispersion and lubricant | ~ 260°C | |
| Tombo No. 9039 | Gylon | Carbonized PAN fiber + PTFE dispersion | ~ 200°C | N/A |
| Tombo No. 9077-L | NAFLON™Carbon Fiber Packing - L | Carbon fiber + PTFE dispersion | ~ 260°C | N/A |
| Tombo No. 2788-AF | AL-METAL Packing - AF | Crinkled aluminium foil + special lubricant + graphite | ~ 550°C | N/A |
| Tombo No. 9027 | NAFLON PTFE Molded | PTFE resin | ~ 200°C | N/A |
| Tombo No. 9042-OX | NAFLON™ Fiber Packing-G (OX) | Stretched + reinforced PTFE | ~ 260°C | N/A |
| Tombo No. 9042-S | NAFLON™ Fiber Packing-G (S) | Silicon based lubricant treated 9042-OX | ~ 260°C | N/A |

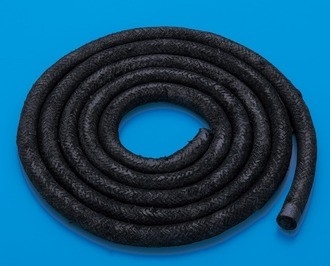

Other packings
Packings for corrosive fluid prevent leakage from the shaft portion of rotating equipment, such as pumps and agitators.
| Product Code | Product Name | Description | Application | Data Sheet |
|---|---|---|---|---|
| Tombo No. 9027 | NAFLON PTFE Molded | PTFE resin | ~ 200°C | N/A |
| Tombo No. 2660 | Lip Type Packings | Cotton duck + synthetic rubber | ~ 120°C | N/A |
| Tombo No. 2661 | Lip Type Packings | Various kinds of rubber | ~ 120°C | N/A |
| TomboNo. 2665 | Lip Type Packings | TOMBO No. 2660 treated with PTFE dispersion | ~ 120°C | N/A |
| Tombo No. 2670 | Rubber O-ring | Material: NBR; CR; EP; SI; PFK; FA | Depend on each material | N/A |
| Tombo No. 9026 | NAFLON™ PTFE Back-up Ring | Machined PTFE ring | High pressure (over 7Mpa) | N/A |
| Tombo No. 8420/ 8520 series | NA Round/Square Braided Packing | Alkalin earth silicate wool | ~600°C - 800°C | N/A |
