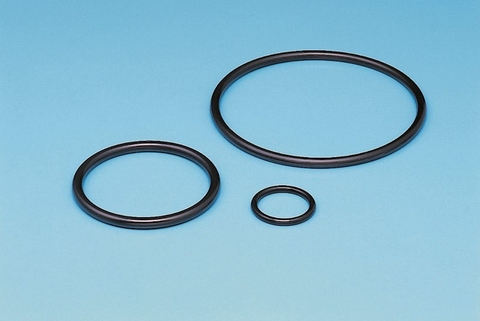

HIGH PERFORMANCE O-RINGS (FFKM, Special FKM, FKM)

[NEW PRODUCT]
Tombo No. 2675-S2

Blazer™O-ring-S2

PERFLUORO ELASTOMER (FFKM)
Features:

Standard hardness (Duro A): 80
Heat resistance, wear resistance and crossion resistance
Rough value of heat resistance: 320°C

Applications:
Can be used as a seal in valves, pumps, turbo machinery, painting machines, centrifuges, agitators, analyzers, reaction furnaces,etc.

[NEW PRODUCT]
Tombo No. 2675-FC

Blazer™O-ring-FC

Special FLUORO ELASTOMER (Special FKM)
Features:

Standard hardness (Duro A): 60
Plasma resistance
Rough value of heat resistance: 200°C
Applications:

Sealing of plasma CVD units

[NEW PRODUCT]
Tombo No. 2675-FE

Blazer™O-ring-FE

Special FLUORO ELASTOMER (Special FKM)
Features:

Standard hardness (Duro A): 60
Plasma resistance Rough value of heat resistance: 200°C
Applications:

Sealing of plasma etching units

Tombo No. 2670-BNX

Blazer™ NEXT

PERFLUORO ELASTOMER (FFKM)
Features:

Standard hardness (Duro A): 76
Heat resistance and crossion resistance
Rough value of heat resistance: 335°C
Applications:

Sealing of heat treatment units for manufacturing semiconductors and LCD concerning which heat resistance is particularly necessary (annealing furnaces, LPCVD units, etc.)
Sealing of units, piping and valves used in various industrial fields

Tombo No. 2675-A

Blazer™ Oring-A

PERFLUORO ELASTOMER (FFKM)
Features:

Standard hardness (Duro A): 75
Chemical resistance
Rough value of heat resistance: 210°C
Applications:

Sealing of washing units, coaters/developers, wet etching units, filters, etc.

Tombo No. 2670-PFW

Perfluro PFW™

PERFLUORO ELASTOMER (FFKM)
Features:

Standard hardness (Duro A): 70
Plasma resistance
Rough value of heat resistance: 200°C
Applications:

Sealing of plasma etching units, plasma CVD units, etc

Tombo No. 2670-TPEF

Pure Rubber™

FLUORO ELASTOMER + fluoro-resin (FKM)
Features:

Standard hardness (Duro A): 60
Ozone resistance and chemical resistance
Rough value of heat resistance: 150°C
Applications:

Sealing of washing unit, etc.
Conveying rollers for LCD manufacturing units

Tombo No. 2670-FB

FluoroElastomer FB

3-way FLUORO ELASTOMER (FKM)
Features:

Standard hardness (Duro A): 70
Chemical resistance
Rough value of heat resistance: 200°C
Applications:

Washing units, wet etching units, filters, etc.

Tombo No. 2670-FA-F

Fluoro Plus™

FLUORO ELASTOMER (Special FKM)
Features:

Standard hardness (Duro A): 70
Low-friction and non-adhesiveness
Rough value of heat resistance: 200°C
Applications:

For sealing parts that slide intermittently, and also parts that are repeatedly opened and closed (Sealing various control valves)
Places where conventional elastomer sticks fast to metal, causing maintenance performance to deteriorate.

Tombo No. 2670-FA

Fluoro Elastomer FA

2-way FLUORO ELASTOMER (FKM)
Features:

Equivalent to FKM-70 in JIS B 2401 (O-rings)
Standard hardness (Duro A): 70
Heat resistance, oil resistance, and vacuum sealing ability
Rough value of heat resistance: 200°C
Applications:

Sealing of vacuum equipment, heat treatment equipment, etc.

Features:

Joining & vulcanizing more Orings together (By request)
Applications:

Sealing of large LCD manufacturing units
