Materials (Sheets, Rods, Films and Tapes, Pipes)
Sheet
Sheet materials with a broad range of uses, from gaskets and electric insulation materials to mechanical parts with outstanding chemical stability, electrical characteristics and low coefficients of friction offered by fluoropolymers.
| Product Code | Product Name | Description | Application | Data Sheet |
|---|---|---|---|---|
| Tombo No. 9000 | NAFLON™ sheet |
PTFE, PFA, PVDF, PCTFE Standard Size (mm): 300 – 1220 |
Industry: Chemistry & Petrochemistry, Chemistry | N/A |
Rod
Rod-shaped materials used in connectors, terminals, miscellaneous electric parts, laboratory equipment valves, and check valve balls with excellent chemical stability, electrical characteristics and low coefficients of friction offered by fluoropolymer.
| Product Code | Product Name | Description | Application | Data Sheet |
|---|---|---|---|---|
| Tombo No. 9002 | NAFLON™ rod |
PTFE, PFA, PCTFE, PVDF |
Industry: Chemistry & Petrochemistry, Chemistry, Electronics, Semiconductors & Flat Panel Displays (FPD) | N/A |
Tape
Tape-shaped materials used for insulation in motors and generators operated in high-temperature corrosive gases, coil insulated windings, slot insulation plastic molding release agents, and hopper linings with exceptional chemical stability, electrical characteristics and low coefficients of friction offered by fluoropolymers.
| Product Code | Product Name | Description | Application | Data Sheet |
|---|---|---|---|---|
| Tombo No. 9001 | NAFLON™ tape |
PTFE |
Industry: Chemistry & Petrochemistry, Chemistry | N/A |
Pipe
Pipe-shaped materials widely used for valve seats, packings (e.g. V-packings), self-lubricating bearings of mechanical parts and gaskets with outstanding chemical stability, electrical characteristics and low coefficients of friction offered by fluoropolymers.
| Product Code | Product Name | Description | Application | Data Sheet |
|---|---|---|---|---|
| Tombo No. 9008 | NAFLON™ pipe |
PTFE, PVDF |
Industry: Chemistry & Petrochemistry, Chemistry | N/A |
Chemical wares
NAFLON PFA Chemical Wares are containers made from PFA fluorocarbon resin by blow moulding method. These wares have exceptional chemical resistance, little elution of impurities and high mechanical strength and are suitable for pharmaceutical and science laboratories.
| Product Code | Product Name | Description | Application | Data Sheet |
|---|---|---|---|---|
| Tombo No. 9948 | NAFLON™ Chemical wares |
PFA chemical wares available in Narrow/Wide Bottles and Erlenmeyer Flasks |
Industry: Pharmaceutical and science laboratories | N/A |
TOMBO™ No. 9000 NAFLON™ PTFE SHEET
PTFE sheet
TOMBO™ No. 9000
NAFLON™ PTFE SHEET
The NAFLON PTFE sheet is a versatile material made by compression molding a single-substance PTFE or a powdered raw PTFE material in which various inorganic fillers are mixed with the PTFE.
.
Application
NAFLON PTFE sheets are widely used in gaskets, electrical insulation materials, mechanical parts, etc. due to fluororesin’s excellent chemical stability, electrical properties, and low friction coefficient. If you require wear resistance and compression strength, use the sheet with filler.
NAFLON PTFE sheet with filler
It is a sheet material that offers improved wear resistance, creep resistance, thermal conductivity, and thermal dimensional stability by blending various inorganic fillers with PTFE. Optimal for use with mechanical parts that require heat resistance and wear resistance.
*Depending on the usage atmosphere (type of chemical solution, etc.), some grades cannot be used. If you have any questions, please contact us.
Type
| TOMBO No. | Filler Material |
| 9000-G15, 20, 25 | Glass fiber (15%, 20%, 25%) |
| 9000-GR15, 30 | Graphite (15%, 30%) |
| 9000-GMo | Glass fiber (15%) + molybdenum disulfide (5%) |
| 9000-GGR | Glass fiber (20%) + graphite (5%) |
| 9000-BR | Bronze (60%) |
| 9000-CF10, 15 | Carbon fiber (10%, 15%) |
| 9000-SC | Special carbon |
| 9000-LC | Low creep |
Standard dimension
Angular plate
Unit: (mm)
| Material | Thickness | Vertical × horizontal |
| Pure PTFE | 1 to 6 (Skived) | 300, 500, 1000, 1220 |
| 7 to 80 (Stamped) | ||
| With filler material -G15, 20, 25, -GR15, 30, -GMo, -GGR, -BR, -CF10, 15 |
4 to 50 (Stamped) | 300, 500, 1000 |
| With special carbon -SC |
1.5 to 3 | 1220 |
| With special filler material -LC |
1.5 to 3 | 1220 |
*For products with a thickness of 3 mm or less, we can manufacture a longer version of the product. If you are interested, please contact us.
Others
- TOMBO is a registered trademark or trademark of NICHIAS Corporation.
- Name of products with "®" are registered trademarks of NICHIAS Corporation.
- Name of products with "™" are trademarks of NICHIAS Corporation
Download catalog
TOMBO™ No. 9001 NAFLON™ PTFE TAPE
PTFE tape
TOMBO™ No. 9001
NAFLON™ PTFE TAPE
It is a thin PTFE tape that is cut to a specified thickness from a cylindrical PTFE forming block. It combines PTFE’s excellent electrical properties, non-adhesiveness, and low friction coefficient.
.
Application
For motors that use high-temperature and corrosive gases, insulation materials for generators, coil winding insulation, slot insulation, mold release materials for the molding of various plastics, and the lining of hoppers.
NAFLON PTFE tape with filler
| TOMBO No. | Filler Material |
| 9001-G20 | Glass fiber (20%) |
| 9001-GR15 | Graphite (15%) |
| 9001-GMo | Glass fiber (15%) + molybdenum disulfide (5%) |
| 9001-CF15 | Carbon fiber (15%) |
| 9001-GGR | Glass fiber (20%) + graphite (5%) |
Standard dimension
Angular plate
Unit: (mm)
| Material | Thickness | Maximum width (mm) | Length (m) |
| Pure PTFE | 0.05 to 2.0 | Maximum length of 500 |
5 to 100 (The minimum and maximum lengths differ depending on the thickness. ) |
| With filler material | 0.2 to 1.5 | 200 |
20 to 150 (The maximum length differs depending on the thickness. ) |
Others
- TOMBO is a registered trademark or trademark of NICHIAS Corporation.
- Name of products with "®" are registered trademarks of NICHIAS Corporation.
- Name of products with "™" are trademarks of NICHIAS Corporation
Download catalog

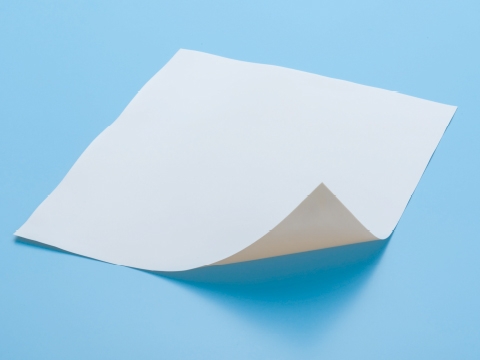

TOMBO™ No. 9004-K/-R PTFE CEMENTABLE TAPE
PTFE cementable tape
TOMBO™ No. 9004-K/-R
PTFE CEMENTABLE TAPE
It is a cementable NAFLON PTFE tape that can be bonded with an adhesive. We have both double-sided and single-sided NAFLON PTFE cementable tape. Be aware that the bonding effect will diminish when exposed to ultraviolet rays. If you have any questions about the treatment of PTFE tapes with adhesive tape or filler, please contact us.
.
Type
| Type | |
| TOMBO No.9004-K Single-Sided NAFLON PTFE Cementable Tape |  |
| TOMBO No.9004-R Double-Sided NAFLON PTFE Cementable Tape |  |
Others
- TOMBO is a registered trademark or trademark of NICHIAS Corporation.
- Name of products with "®" are registered trademarks of NICHIAS Corporation.
- Name of products with "™" are trademarks of NICHIAS Corporation
Download catalog

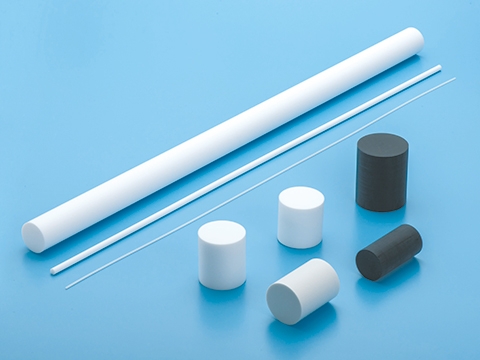

TOMBO™ No. 9002 NAFLON™ PTFE ROD
PTFE rod
TOMBO™ No. 9002
NAFLON™ PTFE ROD
The NAFLON PTFE rod is a PTFE material made by molding raw PTFE powder to a specified thickness by way of either ram extrusion molding or compression molding. The rod can be cut for use as electrical or mechanical parts.
.
Specification
NAFLON™ PTFE rod
It is a rod that combines PTFE’s excellent electrical properties, non-adhesiveness, and low friction coefficient.
NAFLON PTFE rod with filler
Abrasion resistance, compressive strength, and dimensional stability are improved by adding various fillers to PTFE.
Application
For connectors, terminals, other electrical components, stopcocks for laboratory equipment, check valve balls, etc.
Type
| TOMBO No. | Filler material |
| 9002-G15, 20, 25 | Glass fiber (15%, 20%, 25%) |
| 9002-GR15, 30 | Graphite (15%, 30%) |
| 9002-GMo | Glass fiber (15%) + molybdenum disulfide (5%) |
| 9002-CF10, 15 | Carbon fiber (10%, 15%) |
| 9002-SC | Special carbon |
| 9002-GGR | Glass fiber (20%) + graphite (5%) |
| 9002-BR | Bronze (60%) |
| 9002-SCCF | Special carbon + carbon fiber |
*As TOMBO No. 9002-SCCF contains a large amount of filler, if it is used as a glass sealing material, it may leak depending on the conditions of use. If you have any questions about this matter, please contact us.
Standard dimensions
Unit: (mm)
| Material | Diameter | Length |
| Pure PTFE | 1 to 210 | 150, 1000 |
| With filler material | 15 to 180 | 150 |
Others
- TOMBO is a registered trademark or trademark of NICHIAS Corporation.
- Name of products with "®" are registered trademarks of NICHIAS Corporation.
- Name of products with "™" are trademarks of NICHIAS Corporation
Download catalog

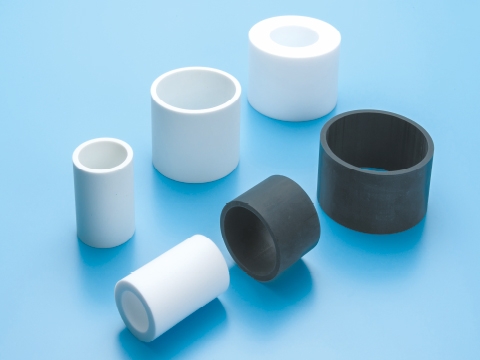

TOMBO™ No. 9008 NAFLON™ PTFE PIPE
PTFE pipe
TOMBO™ No. 9008
NAFLON™ PTFE PIPE
NAFLON PTFE pipe is a thick-walled pipe material that is formed into a cylindrical shape by way of compression molding. NAFLON PTFE pipe can be used for a wide range of applications such as the likes of valve seats, V-packings, no-lubrication bearings of machine parts, gaskets, and packings, which are cut and require chemical resistance.
.
Standard
This product is compliant with JIS K6897.
Standard dimension
Unit: (mm)
| Length | Outside diameter |
| 100 | 20 to 1115 |
*If you would like to know the dimensions of the product with a filler material, please contact us.
*If you inform us of the final product, we will select the optimum material dimensions for you.
NAFLON PTFE pipe with filler and types and applications
Unit: (mm)
| TOMBO No. | Filler Material | Application |
| 9008-G15 G20 G25 | Glass fiber (15%, 20%, 25%) | Packings, bearings, piston rings, mechanical parts, electrical insulators, etc. |
| 9008-GGR | Glass fiber, graphite | No-lubrication bearings, piston rings, valve seats, etc. |
| 9008-GMo | Glass fiber, molybdenum disulfide | Bearings, etc. |
| 9008-BR | Bronze | High-speed bearings, mechanical parts, etc. |
| 9008-SC | Special carbon | Gaskets, valve discs, valve seats, mechanical parts (for hydrofluoric acid applications), etc. |
| 9008-GR15 GR30 | Graphite | Bearings, piston rings, mechanical seals |
| 9008-CF10 CF15 | Carbon fiber | Valve seats, valve disks, bearings, etc. |
| 9008-SCCF | Special carbon, carbon fiber | Valve seats, valve disks, etc. |
*As TOMBO No. 9008-SCCF contains a large amount of filler, if it is used as a gas sealing material, it may leak depending on the conditions of use. If you have any questions about this matter, please contact us.
