Room Temperature to 200°C

Forte

It has excellent heat and thermal insulation and sound absorption properties.
It is lightweight and flexible, and so it offers excellent handling and processing properties.
It offers excellent heat resistance.
Its excellent thermal insulation performance contributes significantly to saving energy.
It is a product that is deemed recyclable under the Industrial Waste Wide Area Certification System

Application

Heat insulation, thermal insulation, and noise dampening for steel plate ducts
Heat and thermal insulation for plant equipment and sound absorption for machine rooms and electrical rooms
Core material for partition walls and filler material for parts that pass through fire compartments
Sound-absorption materials such as for studios and halls
Backup materials for ceramic fiber furnace materials
Filler materials for suspended, lightweight partition walls
Thermal insulation and soundproofing for air conditioning facility ducts and equipment
Thermal insulation and soundproofing for the ceilings, walls, partitions, and doors of buildings
Sound absorption of machine rooms and generator rooms
Acoustic sound-absorption materials such as for studios and hall

Specification

Thermal conductivity

<Reference> 1 W/m･K = 0.86 kcal/m･h･°C
Density of 80 kg/m3
-20°C≤θ<100°C λ＝0.0337＋1.51×10-4θ
100°C≤θ<600°C λ＝0.0395＋4.71×10-5θ＋5.03×10-7θ2
Density of 120 kg/m3
-20°C≤θ<100°C λ＝0.0337＋1.28×10-4θ
100°C≤θ≦600°C λ＝0.0407＋2.52×10-5θ+3.34×10-7θ2

• TOMBO is a registered trademark or trademark of NICHIAS Corporation.
• Name of products with "®" are registered trademarks of NICHIAS Corporation.
• Name of products with "™" are trademarks of NICHIAS Corporation

Forte

It offers excellent heat insulation and thermal insulation.
It is lightweight and flexible, and so it offers excellent handling and processing properties.
It offers excellent heat resistance.
Its excellent thermal insulation performance contributes significantly to saving energy.
It is a product that is deemed recyclable under the Industrial Waste Wide Area Certification System.

Specification

Note 1: It is a product where the base material, which has acquired the Ministry of Land, Infrastructure, Transport and Tourism’s non-flammable certification NM-8600, has been machined.

Application

Heat insulation for air conditioning ducts, various pipes, and tanks
Fire protection material for kitchen exhaust ducts in housing complexes

• TOMBO is a registered trademark or trademark of NICHIAS Corporation.
• Name of products with "®" are registered trademarks of NICHIAS Corporation.
• Name of products with "™" are trademarks of NICHIAS Corporation

Forte

It has excellent heat and thermal insulation.
It is lightweight and flexible, and so it offers excellent handling and processing properties.
It offers excellent heat resistance.
Its excellent thermal insulation performance contributes significantly to saving energy.
It is a product that is deemed recyclable under the Industrial Waste Wide Area Certification System.

Specification

Application

Various ducts for air conditioning facilities
Heat and thermal insulation for various equipment
Heat and thermal insulation for various pipes and valves
Fire protection material for kitchen exhaust ducts in housing complexes
Thermal insulation, heat insulation, and condensation prevention for the ceilings, walls, and partitions, of buildings

• TOMBO is a registered trademark or trademark of NICHIAS Corporation.
• Name of products with "®" are registered trademarks of NICHIAS Corporation.
• Name of products with "™" are trademarks of NICHIAS Corporation

Forte

It has excellent heat and thermal insulation and sound absorption properties.
It is lightweight and flexible, and so it offers excellent handling and processing properties.
It offers excellent heat resistance.
Its excellent thermal insulation performance contributes significantly to saving energy.
It is a product that is deemed recyclable under the Industrial Waste Wide Area Certification System.

Specification

Application

Thermal insulation, soundproofing, and fire resistance for boiler furnace walls, tanks, and smoke airways
Thermal insulation for thermal power generation, various plant pipes, tanks, and towers
Added thermal and heat insulation on top of existing plant insulation
Heat and thermal insulation for large-diameter pipes, ducts, and equipment of air conditioning facilities

• TOMBO is a registered trademark or trademark of NICHIAS Corporation.
• Name of products with "®" are registered trademarks of NICHIAS Corporation.
• Name of products with "™" are trademarks of NICHIAS Corporation

Forte

It is a snap-on type, so it has excellent workability when installed.
Rock wool is used for the base material, and so it has better thermal insulation performance and heat-resistant temperature scope compared to other fibrous heat insulation materials.
As you would expect, it is a non-combustible material.
Nichias also has adhesive ALGC products for outer materials.

Specification

Application

Heat and thermal insulation for various pipes
Processing for parts that pass through fire compartments
Heat and thermal insulation for copper pipes

• TOMBO is a registered trademark or trademark of NICHIAS Corporation.
• Name of products with "®" are registered trademarks of NICHIAS Corporation.
• Name of products with "™" are trademarks of NICHIAS Corporation

Forte

It delivers excellent thermal insulation performance.
Special heat resistance treatment enables it to keep its flexibility up to high temperatures.
Its maximum working temperature is 550°C.
It can also be used for stainless steel pipes such as for nuclear power applications.

Specification

INSULTEX Cloth (TOMBO No.8400)

INSULTEX Tape (TOMBO No.8401)

INSULTEX Yarn (TOMBO No.8402)

INSULTEX Tube (TOMBO No.8403)

Application

Thermal duvet covers, heat insulation lagging, thermal insulation materials, heat shielding curtains, packing, others.

• TOMBO is a registered trademark or trademark of NICHIAS Corporation.
• Name of products with "®" are registered trademarks of NICHIAS Corporation.
• Name of products with "™" are trademarks of NICHIAS Corporation

Forte

Heat reflectivity (vertical direction)
Heat reflectivity (horizontal direction)

Application

Covering of equipment used in places with radiant heat such as near a fire or high temperature furnace.
Insulation covering for pipes and ducts.

• TOMBO is a registered trademark or trademark of NICHIAS Corporation.
• Name of products with "®" are registered trademarks of NICHIAS Corporation.
• Name of products with "™" are trademarks of NICHIAS Corporation

Download catalog

Forte

It offers excellent resistance to molten metal.
Lightweight and flexible.
It offers excellent workability.
*We also offer custom-designed sewn products. Please consult us if you have particular specifications in mind.

Application

Prevents the scattering of welding sparks
Prevents the scattering of slag when cutting
Equipment protection and covering
Non-combustible curtain

Product specifications and quality characteristics

Note 1: JIS A 1323 Flame retardant testing method for spark droplets of welding and gas cutting on fabric sheets in construction works
*These are our actual measurement values. They are not standard values.

Comparison with carbon-based cloth

A test was carried out to compare the product with a carbon-based cloth that is typically used at welding sites.
Specimen
FIRE PROOF CLOTH S (Nichias product)
FIRE PROOF CLOTH SW cloth surface (Nichias product)
FIRE PROOF CLOTH SW coating surface (Nichias product)
A typically used carbon-based cloth
Test conditions and test method
JIS A 1323 Class A equivalent
The four test specimen types were used to assess the flame retardancy of sparks generated when a 9mm-thick steel plate for spark generation was cut.
Judgment criteria
No through holes that are harmful in terms of ignition and fireproofing.
Test results
No through holes that are harmful in terms of ignition and fireproofing were made in either test specimen during the test (about 48 seconds long).
However, smoke was observed after the “typically used carbon-based cloth” was cut on its own.
A video of the test is below.

• TOMBO is a registered trademark or trademark of NICHIAS Corporation.
• Name of products with "®" are registered trademarks of NICHIAS Corporation.
• Name of products with "™" are trademarks of NICHIAS Corporation

Download catalog

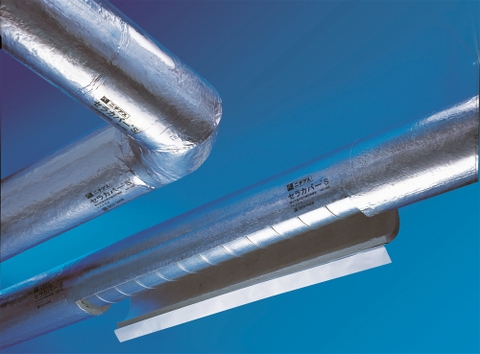

Forte

Thin
It has a thickness of 20 mm and offers performance beyond that of a 50 mm rock wool.
One-touch installation
A snap-on type that has an outer material (ALGC).
It has improved handling performance
The thermal insulation properties have been significantly improved and it is less susceptible to scratches. (The outside material has been changed to ALGC as standard.)

Various certifications of CERACOVER-S

Fire Equipment Safety Center of Japan Performance Rating
CERACOVER-S Rating No. 29-004
Non-combustible material certified by the Ministry of Land, Infrastructure, Transport and Tourism
TOMBO No.4520-S CERACOVER-S Non-combustible NM-4365-2
Formaldehyde emission grade
CERACOVER-S: F☆☆☆☆ (four-star grade) / MFN-3404 certified by the Ministry of Land, Infrastructure, Transport and Tourism
Tokyo Fire Prevention Ordinance
Complies with the stipulation in Section 2-1-2 (c) of Article 3

Production specifications

• TOMBO is a registered trademark or trademark of NICHIAS Corporation.
• Name of products with "®" are registered trademarks of NICHIAS Corporation.
• Name of products with "™" are trademarks of NICHIAS Corporation

Forte

It is detachable.
It can be used repeatedly.
It offers excellent water resistance.
*Please contact us if you would like us to manufacture this product for high-temperature applications.

Application

Thermal insulation and heat insulation of valves, flanges, and heat exchange equipment
Thermal insulation and heat insulation of towers and tanks
Thermal insulation of heat dissipation equipment
Thermal insulation and heat insulation of regularly repaired and maintained parts
