Minus to Room Temperature

Pyrogel™ XTE

Low thermal conductivity flexible insulation material

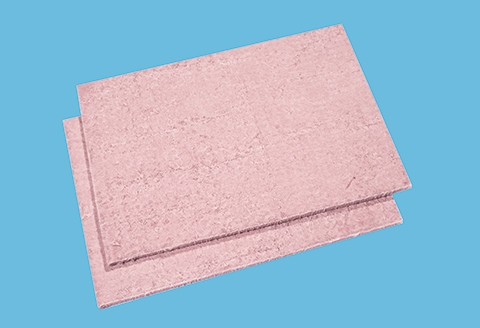

Pyrogel™ XTE

Pyrogel XTE is a heat insulation Aerogel blanket that is made by impregnating silica Aerogel into glass fiber cloth.
Silica Aerogel is known as a material with the lowest thermal conductivity of any solid. It has features such as excellent thermal insulation properties, water repellency, flexibility, environmental safety, and ease of handling, and can achieve excellent heat insulation performance. Pyrogel XTE is an ideal heat insulation material for retaining heat in high-temperature pipes, equipment, and tanks, and is essential for pursuing the best possible thermal efficiency.

Forte
Compared to conventional heat insulation materials such as rock wool heat insulation materials, calcium silicate heat insulation materials, and water-repellent perlite heat insulation materials, it has between approximately one-half to one-third the thermal conductivity.
Despite being thinner, it offers heat insulation performance equivalent to that of conventional heat insulation materials.
It is both water-repellent and permeable to water vapor. It emits moisture from the inside of the heat insulation material to the outside in the form of vapor and also prevents the ingress of rainwater from the outside surface of the heat insulation material, thereby reducing the risk of corrosion under insulation (CUI).
It is a soft and flexible sheet with excellent recovery properties.
It can easily be cut with a box cutter knife or the like and adapts to complex shapes, curves, and narrow spaces.
Different from pipe covers and molded board-shaped heat insulation materials, Pyrogel XTE can support various pipe diameters, shapes, and thicknesses on its own.

Specification

Thickness	5mm	10mm
Width × length (Note 1)	1.45m×14.4m	1.45m×7.2m
Working temperature (Note 2)	-40°C to 650°C
Color	Maroon
Density (Note 3)	200kg/m3
Water repellency (Note 4)	Yes

Note 1: The width indicates the product’s nominal dimensions.
Note 2: Pyrogel XTE may generate heat on its own depending on the usage method. If the temperature of the installation site is 400°C or more, please consult us.
Note 3: The density is a typical value.
Note 4: The water repellency is maintained when heated. If the water repellent (silane compound) experiences thermal decomposition, some pyrolysis gas may be produced.

Thermal Conductivity

Mean temperature (°C)	0	100	200	300	400	500	600
Thermal conductivity	0.020	0.023	0.028	0.035	0.046	0.064	0.089

Note 5: The value at the time of manufacturing, which was measured with a load of 1.41N/cm2 in accordance with ASTM C177.

Heat insulation material thickness comparison

TOMBO is a registered trademark or trademark of NICHIAS Corporation.
Name of products with "®" are registered trademarks of NICHIAS Corporation.
Name of products with "™" are trademarks of NICHIAS Corporation

TOMBO™ No. 5000-TN FOAMNERT™ BOARD

Board and cover

TOMBO™ No. 5000-TN

FOAMNERT™ BOARD
FOAMNERT TN is a rigid urethane foam thermal insulation material made of closed-cell foam. It is a carbon dioxide foam-based cryogenic insulation material that does not contain any chlorofluorocarbon foaming agents such as HCFCs and HFCs.
Molded products include covers and boards. Nichias’ covers are JIS-certified products (certification number GB0309002).
It can be used within the temperature range of -196°C to +100°C. It can be widely used as a thermal insulation material for LNG and LPG bases, ships, petrochemical plants, and district heating and cooling.
Note: +40°C or less is recommended for the internal temperature when using continuously.

Forte
JIS-certified product
(JIS A9511-2006R Class A heat insulation material in a foamed plastic form; Class 2 heat insulation material and heat insulation roll)
Excellent low-temperature stability
Free of HCFC and HFC
Low thermal conductivity
Minimal water absorbency and hygroscopicity
Easy installation
High mechanical strength
Economic

Application

Power stations and various industrial plants
Pipes and equipment insulation at LNG and LPG bases, pharmaceutical plants, petrochemical plants, etc.
Ship building
Insulates LNG and LPG tanker pipes and storage tanks.
Space development
Insulates rocket liquid fuel pipes, etc.
Construction-related
Insulates the anti-condensation materials and pipes of buildings and district heating and cooling systems.
Other

TOMBO is a registered trademark or trademark of NICHIAS Corporation.
Name of products with "®" are registered trademarks of NICHIAS Corporation.
Name of products with "™" are trademarks of NICHIAS Corporation

TOMBO™ No. 5001-TN FOAMNERT™ COVER

Board and cover

TOMBO™ No. 5001-TN

FOAMNERT™ COVER
FOAMNERT TN is a rigid urethane foam thermal insulation material made of closed-cell foam. It is a carbon dioxide foam-based cryogenic insulation material that does not contain any chlorofluorocarbon foaming agents such as HCFCs and HFCs.
Molded products include covers and boards. Nichias’ covers are JIS-certified products (certification number GB0309002).
It can be used within the temperature range of -196°C to +100°C. It can be widely used as a thermal insulation material for LNG and LPG bases, ships, petrochemical plants, and district heating and cooling.
Note: +40°C or less is recommended for the internal temperature when using continuously.

Forte

JIS-certified product
(JIS A9511-2006R Class A heat insulation material in a foamed plastic form; Class 2 heat insulation material and heat insulation roll)
Excellent low-temperature stability
Free of HCFC and HFC
Low thermal conductivity
Minimal water absorbency and hygroscopicity
Easy installation
High mechanical strength
Economic

Application

TOMBO is a registered trademark or trademark of NICHIAS Corporation.
Name of products with "®" are registered trademarks of NICHIAS Corporation.
Name of products with "™" are trademarks of NICHIAS Corporation

TOMBO™ No. 5010 FOAMNERT™ SUPPORT

Heat-insulation material for cryogenic pipes

TOMBO™ No. 5010

FOAMNERT™ SUPPORT
TOMBO No.5010 FOAMNERT SUPPORT is a low-temperature pipe support with excellent thermal insulation and mechanical strength developed from Nichias’ testing of urethane foam technologies and cryogenic installation technologies as a manufacturer of thermal and cryogenic insulation materials.
FOAMNERT SUPPORT has a base of high-density urethane foam, and so in addition to its strength as a structural material, it has outstanding thermal insulation and weather resistance.

Forte

It has extremely superior thermal insulation performance compared to wooden supports.
It has excellent weather resistance and does not corrode.
The standard specification models have a density of 300 K and 500 K, and so a 300 K model with greater thermal insulation can be selected to suit your load.
It has a small water absorption rate and there are no concerns over small cracks from the condensing of absorbed water.
Compared to wooden supports, a lineup including large-diameter models can be manufactured inexpensively.
No Freon (including Freon alternatives) has been used.

Application

Pipes and equipment insulation pedestals (supports) at LNG and LPG bases, pharmaceutical plants, petrochemical plants, etc.
Construction-related
Insulates the anti-condensation materials and pipes of buildings and district heating and cooling systems.
