Our semiconductor products have been researched, designed and manufactured to the strictest standards of the industry.
Semiconductor manufacturing process consists of multiple steps to completion. From designing a circuit, growing the wafer to packaging the final integrated circuit. For each step of the production, manufacturers need advanced materials in order to provide a complete solution for a range of electronic devices. It is for these applications that, we provide products that enable semiconductor manufacturers to achieve and exceed market expectations and stake their claim on technological leadership.
Both material and atmosphere contamination are factors that have an impact on the production processes involved. NICHIAS offers a wide variety of products that prevent such contamination from happening – from high purity fluoropolymer NAFLONTM products with excellent resistance to chemicals, plasma, ozone and more; to high-performance elastomer o-rings BLAZERTM series, and even equipment parts for chemical transportation.
Customers include manufacturers involved with wafer processing, IC packaging, or even CCL/PCB manufacturers and many more.

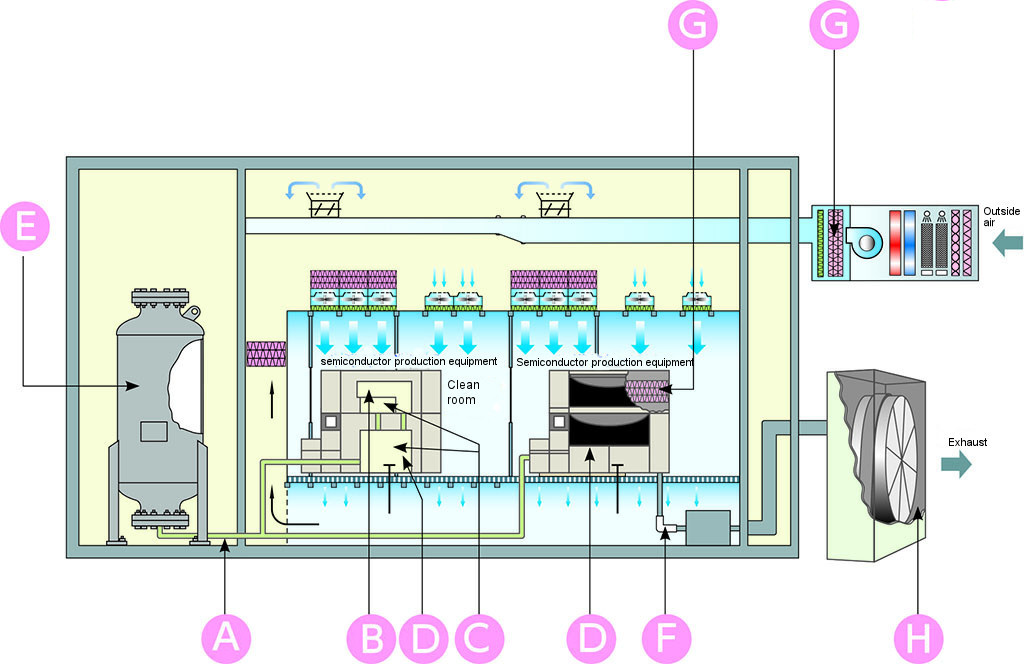

| Picture | Description | Application | Industry |
|
|

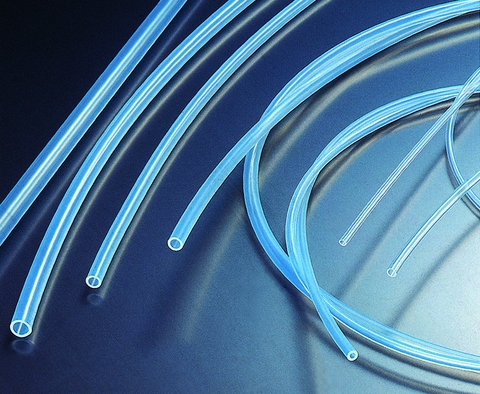

9003/ 9055 Tube and fabricated tubes Fluoropolymer tubes offering outstanding chemical, heat, and weather resistance. |
Used for fluid transfer in a wide range of fields, such as electronics including semiconductors and liquid crystals, medical and food fields, and fine chemicals |
Semiconductor Food & drink Chemical plants |
 |

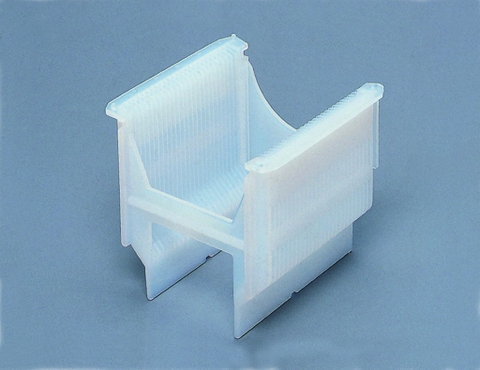

NAFLON™ PTFE Wafer Carrier The tank is moulded from PTFE |
Carrier for water treatment and transportation in cleaning equipment for semiconductor productions |
Semiconductor Food & drink Chemical plants |
 |

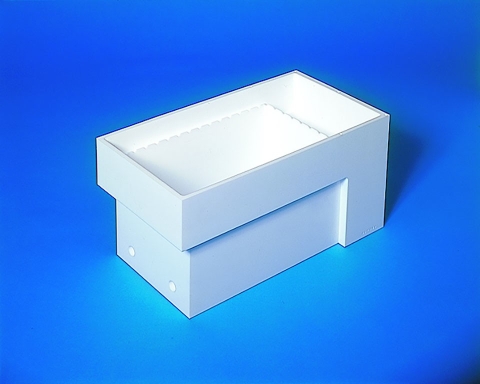

(C) Fluoropolymer Chemical Tank 9500-M/H NAFLON™ PFTE Sink Since the tank is moulded from PTFE, it is perfect for storing high-purity chemicals and waste liquids. |
Chemical solution tank used for cleaning wafers in cleaning equipment for semiconductor and FPD production. |
Semiconductor Food & drink Chemical plants |
 |

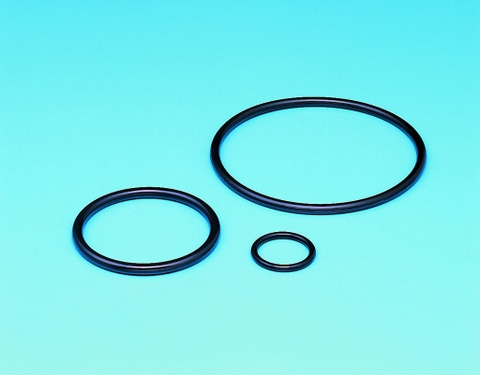

2675-A Rubber O-Ring Rubber O-rings high chemical resistance and low metal elution to chemical liquids. |
- Used as sealing materials in chemical liquid lines - Used in cleaning equipment, coaters and developers (coating, development equipment), wet etching systems, filters and other applications. |
Semiconductor Food & drink Chemical plants |
 |

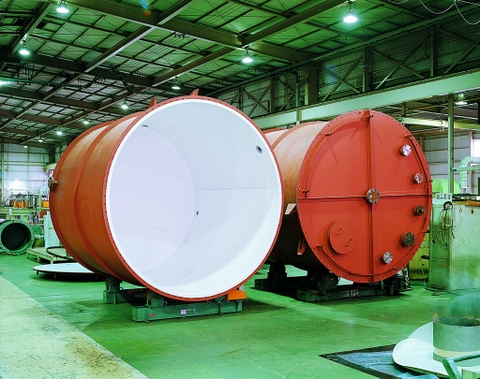

(E) Fluoropolymer Chemical Tanks Tank Lining The inner contact surface is coated with fluoropolymer to maintain chemical purity. |
Fluoropolymer coated tanks for storage of chemicals | Semiconductor |
 |
(F) Detachable Jacket Heater for Pipe Heating and insulation 4500-PH ENETHERMO™ PH Detachable jacket type heater for heating and heat retention of semiconductor production equipment and pipes. |
- It is used to prevent process gas from liquefying or exhaust gas from generating deposits. - It is also used as insulation material for valves in utility lines. |
Semiconductor Food & drink Chemical plants |
 |

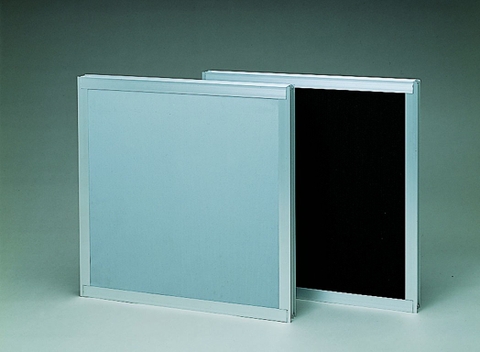

(G) Chemical Filters for Low Concentration Gas Removal 8803 CHEMICAL GUARD™ Series Filters to remove minute amounts of chemical contamination in semiconductor production processes. |
Three types of filters are available for removing ammonia, acidic, and organic gases. |
Semiconductor Food & drink Chemical plants |
 |

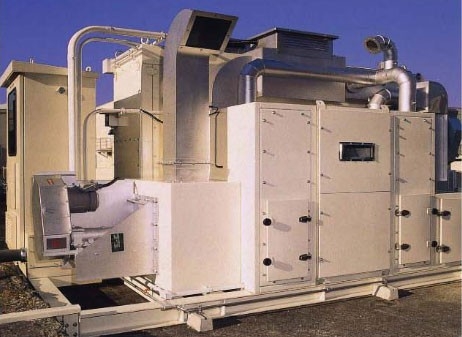

(H) Volatile Organic Compound Concentrator 8805 SOLVENTCLEAN™ This unit focuses on low concentrations of organic solvents emitted from semiconductor manufacturing equipment, manufacturing TFT-LCD with SOLVENTCLEAN™ integration. Compatible with the treatment equipment of various systems VOCs air conditioners can be effectively cleaned. |
Applicable in semiconductor manufacture: memory, CPUs, MPUs, others. | Semiconductor |
