Up to 1500℃
TOMBO™ No. 5625 FINEFLEX BIO™ Board
Board-form heat-insulation material
TOMBO™ No. 5625
FINEFLEX BIO™ Board
FINEFLEX BIO Board is a product that adds inorganic and organic binders to FINEFLEX BIO Bulk and is molded into a board form.
TOMBO No.5625-M is a minimal odor type that has incorporated a very small amount of organic binder. TOMBO No.5625-A is a general-use type that has excellent workability.
Forte
A product made of alkali earth silicate (AES) wool that does not apply to OPHSCS.
It is lightweight and has a low thermal conductivity, and so it displays excellent insulation performance.
Processed products can be manufactured.
Application
General high-temperature insulation
Lining material and backup material for insulating the ceilings of kilns and furnace walls
Expansion allowance filler for each part within a furnace
Gas sealing materials
Quality characteristics
| Item |
TOMBO No. | ||
| 5625-M | 5625-A | ||
| Features | Minimal odor type | It offers excellent machinability | |
| Color | White | ||
| Density (kg/m3) | 250 | ||
| Maximum heat resistant temperature (°C) | 1300 | ||
| Regular working temperature (°C) | 1000 | ||
| Bending strength (MPa) | Normal state | 0.2 | 0.5 |
| Heat shrinkage rate (%) |
1000°C | 1.2 | 0.9 |
| 1200°C | 1.7 | 2.8 | |
| Ignition loss (%) | 0.7 | 4.0 | |
| Chemical components | SiO2, CaO + MgO, other | ||
*The values above are our actual measurement values. They are not standard values.
*Depending on the usage environment, the product may crack and warp at a temperature of 1100°C or more.
*Please use ventilation system to avoid gas and odors during the initial heating process.
When ordering, please inform us of your usage conditions.
Standard dimensions
| Thickness (mm) | Width x length (mm) |
| 25 | 600 x 900 |
| 50 |
Others
- TOMBO is a registered trademark or trademark of NICHIAS Corporation.
- Name of products with "®" are registered trademarks of NICHIAS Corporation.
- Name of products with "™" are trademarks of NICHIAS Corporation
Download catalog
TOMBO™ No. 5675 FINEFLEX BIO™ CAST
Paste-form amorphous fire-resistant material
TOMBO™ No. 5675
FINEFLEX BIO™ CAST
FINEFLEX BIO CAST is a monolithic refractory material in paste form that is made by wet-mixing FINEFLEX BIO Bulk and inorganic binders, etc. It is a repair material that can be easily installed to unique shapes and complex parts due to being a soft, kneaded material.
TOMBO No.5675-400 A standard general-use product.
TOMBO No.5675-700 A high-density, general-use product.
TOMBO No.5675-400P Suitable for pumping and spraying construction methods.
Application
Heating furnace skid pipe host for steel
Casting heating furnace ceilings and side walls
Outer wall sealing for glass tank kiln chamber
Burner tiles and roller tiles
Repairing of existing heat resistance material
Quality characteristics
| Item | Tombo No. | |||
| 5675-400 | 5675-700 | 5675-400P | ||
| Application |
General-use product (Standard type) |
General-use product (High-density type) |
For pump installation | |
| Maximum heat resistant temperature (°C) | 1300 | 1300 | 1300 | |
| Color | White to pale white | White to pale white | White to pale white | |
| Density (kg/m3) | Normal stage (before drying) | 1160 | 1320 | 1160 |
| After drying at 105°C | 450 | 750 | 480 | |
| Heat shrinkage rate (%) | 1200°C x 24h | 2.0 | 2.0 | 2.0 |
| Bending strength (MPa) | After drying at 105°C | 0.5 | 0.9 | 0.8 |
| 1200°C x 24h | 0.4 | 0.8 | 0.4 | |
*The values above are actual values measured by Nichias. They are not standard values.
*Thermal conductivity differs according to the installation state.
*Please use ventilation system to avoid gas and odors during the initial heating process.
Packaging and quantity
| TOMBO No. | Packing & Packing method | |
| 5675-400 | Contains 2 kg/can | Contains 15 kg/can |
| 5675-700 | Contains 2 kg/can | Contains 20 kg/can |
| 5675-400P | Contains 15 kg/can | 330 cc / cartridge |
| 300 cc/plastic bag | 1000 cc/plastic bag | |
*Products packed into a plastic bag are put into a can.
*The storage period is 6 months when storing in a sealed dark room that is 4°C or more.
Others
- TOMBO is a registered trademark or trademark of NICHIAS Corporation.
- Name of products with "®" are registered trademarks of NICHIAS Corporation.
- Name of products with "™" are trademarks of NICHIAS Corporation
Download catalog
TOMBO™ No. 5655 FINE BLOCK™
Block-form heat-insulation material
TOMBO™ No. 5655
FINE BLOCK™
FINE BLOCK is a product that is made by molding FINEFLEX BIO Blanket or an alumina fiber blanket into a block form.
Forte
TOMBO No.5655-B FINE BLOCK-B
It is a block-shaped product that is sewn together with tuck pins after cutting and stacking a blanket.
TOMBO No.5655-S FINE BLOCK-S
It is a block-shaped product for which the cut and stacked blanket undergoes compression molding and a dedicated support bracket is inserted.
TOMBO No.5655-W FINE BLOCK-W
It is a block-shaped product for which a folded blanket undergoes compression molding and a dedicated support bracket is inserted.
Application
Industrial furnace and steel-related lining materials
Veneering materials
Quality characteristics
*The values above are our actual measurement values. They are not standard values.
Standard dimensions and support brackets
| Thickness (mm) | Width × length (mm) |
| 300 | 300×300 |
*Feel free to contact us about other sizes.
FINE BLOCK support bracket
| How it is fixed in place | ||
| Clamped on the inside | Clamped on the outside | One-touch type |
| Fixing screw type fixed in place with nuts | A one-touch type fixed in place with a spring | |
- TOMBO is a registered trademark or trademark of NICHIAS Corporation.
- Name of products with "®" are registered trademarks of NICHIAS Corporation.
- Name of products with "™" are trademarks of NICHIAS Corporation
Download catalog
TOMBO™ No. 5615 FINEFLEX BIO™ Blanket
Blanket-form heat-insulation material
TOMBO™ No. 5615
FINEFLEX BIO™ Blanket
FINEFLEX BIO Blanket are products that are made by repeatedly layering silica-magnesia-calcia-based alkaline earth silicate (AES) wool, molding it into a blanket shape, and then subjecting it to needle punching.
Forte
A safer alkali earth silicate (AES) wool.
It offers excellent heat resistance.
As it has low thermal conductivity, it could provide an excellent thermal insulation effect.
Since it has a low heat storage, it can have a less heat loss to the furnace wall during heating.
It offers excellent thermal shock resistance.
Lightweight and easy to handle.
Application
General insulation
Insulation lining material and backup material for the ceilings of kilns and furnace walls
Expansion allowance filler for each part within a furnace
Quality characteristics
| Item | FINEFLEX BIO | |
| Maximum heat resistant temperature (°C) | 1300 | |
| Heat shrinkage rate (%) | 1100°C×8hr | 1.1 |
| 1200°C×8hr | 1.7 | |
| 1300°C×8hr | 2.0 | |
*The values above are our actual measurement values. They are not standard values.
Standard dimension
| Product name | Product type | Thickness (mm) | Width × length (mm) |
| FINEFLEX BIO Blanket | #100 |
12.5 25 50
|
600×1200 |
| #130 | 600×3600 | ||
| #160 | 600 × 7200 (Note 1) |
Note 1: 50 mm products go up to 6, 000 mm.
*Feel free to contact us about other sizes.
Alkali earth silicate (AES) wool is a new category of heat-resistant fiber that has drawn attention as an alternative to refractory ceramic fiber (RCF). It is a fiber that is outside the scope of the Ordinance on Prevention of Hazards Due to Specified Chemical Substances. (A fiber that is also not applicable to the substances of very high concern (SVHC) as part of the EU REACH regulation.)
- TOMBO is a registered trademark or trademark of NICHIAS Corporation.
- Name of products with "®" are registered trademarks of NICHIAS Corporation.
- Name of products with "™" are trademarks of NICHIAS Corporation
Download catalog

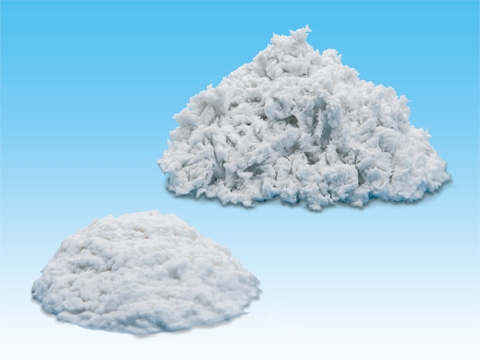

TOMBO™ No. 5605 FINEFLEX BIO™ Bulk
Bulk-form heat-insulation material
TOMBO™ No. 5605
FINEFLEX BIO™ Bulk
FINEFLEX BIO Bulk is a flocculent made by joining together silica, magnesia, and calcia-based alkali earth silicate (AES) wool. It offers excellent flexibility and shock resistance.
Forte
A safer alkali earth silicate (AES) wool.
It offers excellent heat resistance.
As it has low thermal conductivity, it could provide an excellent thermal insulation effect.
Since it has a low heat storage, it can have a less heat loss to the furnace wall during heating.
It offers excellent thermal shock resistance.
Lightweight and easy to handle.
Application
Filler material for insulating the ceilings and walls of various kilns
Expansion filler material for the ceilings and walls of various kilns
Expansion joint packing material for various kilns
Quality characteristics
| Item | Quality characteristics | |
| Maximum heat resistant temperature (°C) | 1300 | |
| Color | White | |
| Average fiber diameter (μm) | 4 | |
| Chemical composition (wt%) | SiO2 | 76 |
| CaO+MgO | 22 | |
| Others | 2 | |
*The values above are our actual measurement values. They are not standard values.
Alkali earth silicate (AES) wool is a new category of heat-resistant fiber that has drawn attention as an alternative to refractory ceramic fiber (RCF). It is a fiber that is outside the scope of the Ordinance on Prevention of Hazards Due to Specified Chemical Substances. (A fiber that is also not applicable to the substances of very high concern (SVHC) as part of the EU REACH regulation.)
- TOMBO is a registered trademark or trademark of NICHIAS Corporation.
- Name of products with "®" are registered trademarks of NICHIAS Corporation.
- Name of products with "™" are trademarks of NICHIAS Corporation
Download catalog
TOMBO™ No. 8300 FIRE PROOF CLOTH
Fire-Proof Cloth
TOMBO™ No. 8300
FIRE PROOF CLOTH
Shipyards and construction sites are constantly exposed to the risk of fires due to spatter and slag produced during welding and cutting. There may also be cases where vital equipment such as computers could be damaged. Our Fire-Proof Cloth is a dedicated spark-protection cloth developed to withstand such severe conditions.
Forte
It offers excellent resistance to molten metal.
Lightweight and flexible.
It offers excellent workability.
*We also offer custom-designed sewn products. Please consult us if you have particular specifications in mind.
Application
Prevents the scattering of welding sparks
Prevents the scattering of slag when cutting
Equipment protection and covering
Non-combustible curtain
Product specifications and quality characteristics
| TOMBO No. | Product name | Coatings |
Size Thickness × width × length |
Class A Test (Note 1) | Mass (g/m2) |
Density (roll/25 mm) |
Tensile strength (N/25mm) |
||
| Vertical | Horizontal | Vertical | Horizontal | ||||||
| 8300-S | Fire-Proof Cloth S | None | 0.65t×810mm×25m | Flame ignition: none | 625 | 54 | 40 | 403 | 377 |
| 8300-SW | Fire-proof cloth SW |
Included (Special resin on one side) |
0.70t×810mm×25m |
Flame ignition: none Through holes: none |
670 | 54 | 40 | 1519 | 372 |
Note 1: JIS A 1323 Flame retardant testing method for spark droplets of welding and gas cutting on fabric sheets in construction works
*These are our actual measurement values. They are not standard values.
Comparison with carbon-based cloth
A test was carried out to compare the product with a carbon-based cloth that is typically used at welding sites.
Specimen
FIRE PROOF CLOTH S (Nichias product)
FIRE PROOF CLOTH SW cloth surface (Nichias product)
FIRE PROOF CLOTH SW coating surface (Nichias product)
A typically used carbon-based cloth
Test conditions and test method
JIS A 1323 Class A equivalent
The four test specimen types were used to assess the flame retardancy of sparks generated when a 9mm-thick steel plate for spark generation was cut.
Judgment criteria
No through holes that are harmful in terms of ignition and fireproofing.
Test results
No through holes that are harmful in terms of ignition and fireproofing were made in either test specimen during the test (about 48 seconds long).
However, smoke was observed after the “typically used carbon-based cloth” was cut on its own.
A video of the test is below.
- TOMBO is a registered trademark or trademark of NICHIAS Corporation.
- Name of products with "®" are registered trademarks of NICHIAS Corporation.
- Name of products with "™" are trademarks of NICHIAS Corporation
Download catalog
|
|
TOMBO™ No. 4518 SILICATE MAT
Heat-insulation mat
TOMBO™ No. 4518
SILICATE MAT
A product that is made by cutting glass fibers to a predetermined length, turning them into a felt form, and then subjecting the subsequent material to needle punching.
Forte
It offers excellent heat resistance.
GLASSMAT / 700°C
SILICATE MAT / 800°C
Application
Heat-insulation and soundproofing materials around catalysts
Heat-insulation and soundproofing materials for exhaust pipes
Thermal Conductivity
0.0347 + 0.000114θ θ = temperature (°C)
Vibration resistance properties
| Type | Conditions | Result | |
| Change in mass rate | Appearance | ||
| SILICATE MAT-GS |
JASO M405-87 600℃, 100Hz |
0.3% | Good |
