Gaskets

Tombo No. 1120

Tombo No. 1120-LN

(used with low-temp fluids)

Filler: Expanded graphite

(with NBR, aramid fibers)

Excellent heat resistance, steam resistance and crossion resistance

Can be used with relatively high temp flanges, valves and equipment

Service temp: -200°C ~ 260°C

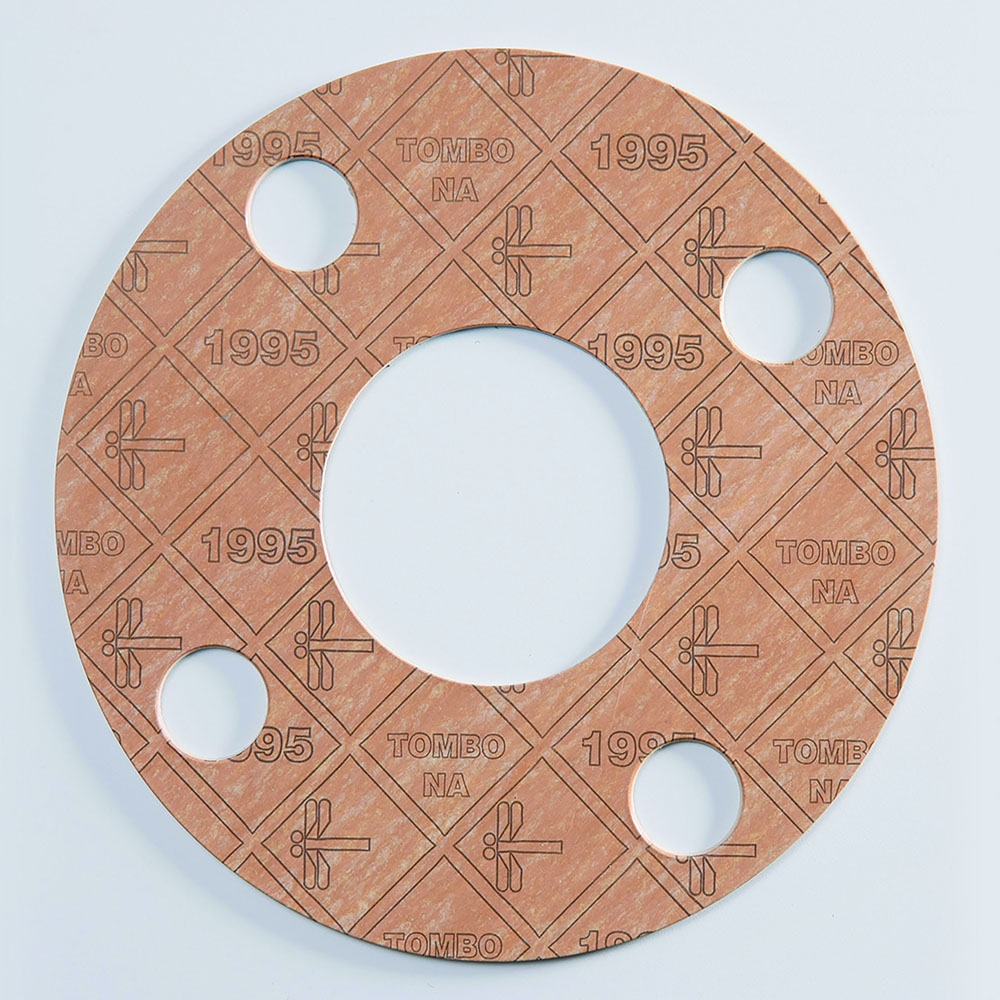

Tombo No. 1995

Tombo No. 1995-W

(CLINSIL™ White)

Filler: Non-asbestos inorganic fibres

(with NBR, aramid fibers)

Superior mechanical strength

Can be used with relatively low temp flanges, valves and equipment

Service temp: -100°C ~ 183°C

Filler: Inorganic fibres

(with specially blended rubber, aramid fibers)

Excellent heat resistance and steam resistance

Service temp: -100°C ~ 215°C

Service pressure: 3 MPa

Filler: Special inorganic fibers

(with NBR, aramid fibers)

Highly resistant to alternative CFCs (chiller compressor)

Service temp: -100°C ~ 180°C

Service pressure: 3 MPa

Filler: Special inorganic fibers

(with NBR, aramid fibers)

High tensile strength ad shearing strength

Service temp: -100°C ~ 100°C

Service pressure: 1 MPa

**New product**

Service temp: ~ 1000°C

Service temp: -29°C ~ 450°C

Filler : Expanded graphite

Service temp: -29°C ~ 450°C

Tombo No. 9090-IOR

NAFLON™ Vortex™

Filler:  PTFE

Chemical resistance

Service temp: -29°C ~ 300°C

Service  pressure: 10 MPa

Tombo No. 1834R- NA

NA Vortex™

Filler: Non-asbestos paper

Service temp:  -29°C ~ 350°C

Service pressure: 26 MPa

Tombo No. 1836R-GS, -GM, -GH series

Vortex™ -GS/ -GM/ -GH

Filler: Mica & expanded graphite

Service temp: -29°C ~ 800°C

Service pressure: 26 MPa

Tombo No. 1839R

GRASEAL™ Vortex™-L

Filler: Expanded graphite

Cryogenic - Stainless flanges

Service temp: -29°C ~ 450°C

Service pressure: 10 MPa

Tombo No. 1839R-AL

GRASEAL™ Vortex™ - AL

Filler: Expanded graphite

Cryogenic - Aluminium flanges

Service temp: -29°C ~ 300°C

Service pressure: 26 MPa

Tombo No. 1841, 1861

Metal jacketed gasket

Filler: By customer request (NA Mill board/ FF sheet/ Expanded graphite)

Metal jacket/corrugated

Service temp: Mill board (530°C, Mill board for high temp: 1300°C, Expanded graphite: 400°C)

Service pressure: 6 MPa

N/A

Tombo No.1850-P

Metal gasket

Flat sheet gasket

Pipe flanges, valves, pressure vessels, heat exchangers under high temp and pressure

Tombo No.1850-V

Oval ring gasket

Ring Type Joints

Pipe flanges, valves, pressure vessels, heat exchangers

Tombo No.1850-C

Octagonal ring gasket

Ring Type Joints

Sealing pipe flanges, valves, pressure vessels, heat exchangers under high temp and pressure

Tombo No. 9200

Metal o-seal

Available with PTFE/silver coating

Stable, high sealing performance

Service temp: -250°C ~ 700°C

Service pressure: High water pressure: 400 Mpa, High-pressure gas: 300 MPa

Tombo No. 1890

Serrated type metallic gasket

Serrated sheet gasket

High sealing performance than flat type metallic gasket

Tombo No. 1200

GRASEAL™ gasket

Expanded graphite sheet

Service temp: Oxidizing atm -240 °C ~ 400 °C

Non-oxidizing atm -240 °C ~ 800 °C

Service pressure: ~ 3.0 MPa

Tombo No. 1210-A

GRASEAL™ gasket MI-A

Tanged Insert 316 steel

Service temp: Oxidizing atm -240 °C ~ 400 °C

Non-oxidizing atm -240 °C ~ 800 °C

Service pressure: ~ 5.2 MPa

Tombo No. 1215 series

GRASEAL™ gasket PM-A

Inserted flat 316 steel

Service temp: Oxidizing atm -240 °C ~ 400 °C

Non-oxidizing atm -240 °C ~ 800 °C

Service pressure: ~ 5.2 MPa

Tombo No. 1880-GR

CMGC gasket

Expanded graphite sheet

Service temp: Oxidizing atm -240 °C ~ 400 °C

Non-oxidizing atm -240 °C ~ 800 °C

Service pressure: ~ 5.2 MPa

Tombo No. 1220/1221

GRASEAL™ gasket tape

(Plane/Crinkle)

Expanded graphite sheet

Service temp: Oxidizing atm -240 °C ~ 400 °C

Non-oxidizing atm -240 °C ~ 800 °C

Service pressure: ~ 3.0 MPa

**New product**

Tombo No. 1155

CLINSIL NEXT™

Filler: PTFE, Silica, Graphite

Stable and high sealing performance for a long period of time at high temp

Service temp: -29°C ~ 300°C

Service pressure: 3.5 MPa

Tombo No. 1133

CLINSIL™ Clean

PTFE + alumina filler

Highest heat resistance of all fluororesin gaskets

Service temp: -200°C ~ 300°C

Service pressure: 3.5 MPa

Tombo No. 9007

9007-SC

9007-LC

9007-GL

9007-FD

9007-LP

9007-G20

NAFLON™ PTFE Gasket

PTFE

PTFE + carbon

PTFE + silica

PTFE+ silica filler

PTFE + silica filler

PFA

PTFE + glass fiber

Suitable for fluids that are not permited to become contaminated

Service temp: -200°C ~ 200°C

Service pressure: 3.0 MPa

Tombo No. 9010-NA series

NAFLON™ PTFE Enveloped Gasket

PTFE + a core made of a joint sheet

Contamination resistance and chemicals resistance

Service temp: -100°C ~ 230°C

Service pressure: 2.0 MPa

Tombo No. 9096 series

Nichias Soft Seal™

Expanded PTFE

Suitable as a piping sealant, or as a gasket for tanks, casings, ducts, pressure vessels, reaction tanks, lined containers, large bore equipment and others.

Tombo No. 1364

NA gasket tape

Glass fibre cloth

Service temp: 400°C

Tombo No. 1374

NA Manhole gasket

Glass fibre cloth

Service temp: 400°C

Tombo No. 1400 series

Manhole gasket

Ceramic fibre & SUS wire

Service temp: 600°C ~ 800°C

Tombo No. 1368

NA tadpole gasket tape

Woven glass cloth coated with rubber

Service temp: 400°C

Tombo No. 1378

NA tadpole gasket

Woven glass cloth coated with rubber

Service temp: 400°C

Tombo No. 1050

Rubber Cut

Basic gasket

Service temp: Depend on rubber material
Service pressure: 1.0MPa

Tombo No. 1051

Rubber Cut Reinforced

Polyester reinforcement layer

Service temp: Depend on rubber material
Service pressure: 1.0MPa

Tombo No. 9013-EP

EBILON™ Solid Rubber

General use

Service temp: -30°C ~ 150°C
Service pressure: 1.0 MPa
Flanges: Full-face

Tombo No. 9013

EBILON™ PTFE

EPDM covered with PTFE (eg. Electrolysis application)

Service temp: -30°C ~ 150°C
Service pressure: 2.0 MPa
Flanges: Full-face

Tombo No. 9014-A

Saniclean™ A

Sanitary gasket for screw couplings

Service temp: -30°C ~ 150°C
Service pressure: 1.0 MPa

Tombo No. 9014-B

Saniclean™ B

Sanitary gasket for ferrules

Service temp: -30°C ~ 150°C
Service pressure: 1.0MPa
Flanges: Full-face
