Semi Metallic and Spiral Wound Gaskets

Vendor: Update

Contact

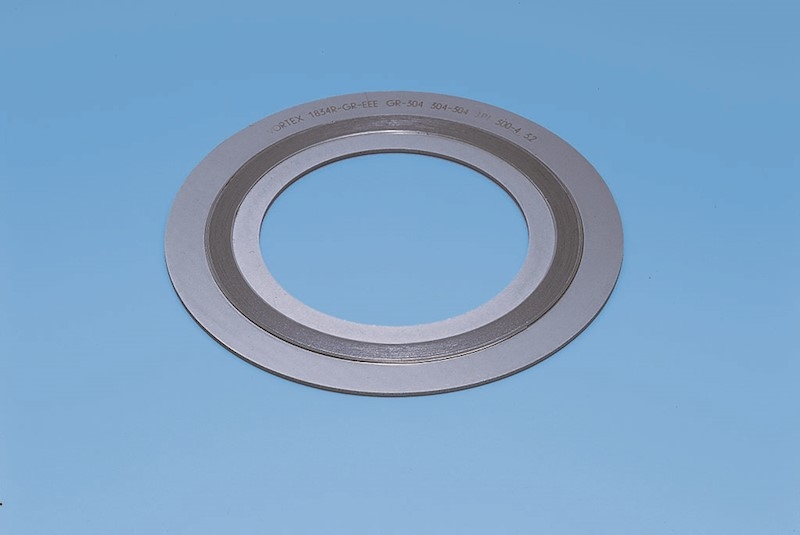

Spiral wound gaskets are a semi-metallic gasket consisting of a V-shaped thin metallic band plate and a non-metallic cushioning material. Capable of being used even under high temperatures and pressures and offering outstanding sealing performance, the gaskets are used in piping and equipment in a wide range of fields including oil refining, petrochemicals, power generation, and LNG terminals.

Product Code	Product Name	Description	Application	Data Sheet
New product Tombo No. 1838R-NM	Vortex™ -NM	Filler: NICHIAS developed original	Service temp: ~ 1000°C Service pressure: 42 Mpa (2500LB)	N/A
Tombo No. 1891	Kammprofile gasket	Filler: By customer request (Graphite/ PTFE)	Service temp: -29°C ~ 450°C Service pressure: 43 MPa	N/A
Tombo No. 1834R-GR	GRASEAL™ Vortex™	Filler : Expanded graphite	Service temp: -29°C ~ 450°C Service pressure: 43 MPa	N/A
Tombo No. 9090-IOR	NAFLON™ Vortex™	Filler: PTFE Chemical resistance	Service temp: -29°C ~ 300°C Service pressure: 10 MPa	N/A
Tombo No. 1834R- NA	NA Vortex™	Filler: Non-asbestos paper	Service temp: -29°C ~ 350°C Service pressure: 26 MPa	N/A
Tombo No. 1836R-GS, -GM, -GH series	Vortex™ -GS/ -GM/ -GH	Filler: Mica & expanded graphite	Service temp: -29°C ~ 800°C Service pressure: 26 MPa	N/A
Tombo No. 1839R	GRASEAL™ Vortex™-L	Filler: Expanded graphite	Cryogenic - Stainless flanges Service temp: -29°C ~ 450°C Service pressure: 10 MPa	N/A
Tombo No. 1839R-AL	GRASEAL™ Vortex™ - AL	Filler: Expanded graphite	Cryogenic - Aluminium flanges Service temp: -29°C ~ 300°C Service pressure: 26 MPa	N/A
Tombo No. 1841, 1861	Metal jacketed gasket	Filler: By customer request (NA Mill board/ FF sheet/ Expanded graphite) Metal jacket/corrugated	Service temp: Mill board (530°C, Mill board for high temp: 1300°C, Expanded graphite: 400°C) Service pressure: 6 MPa	N/A
