Graphite sheet gaskets

Vendor: Update

Contact

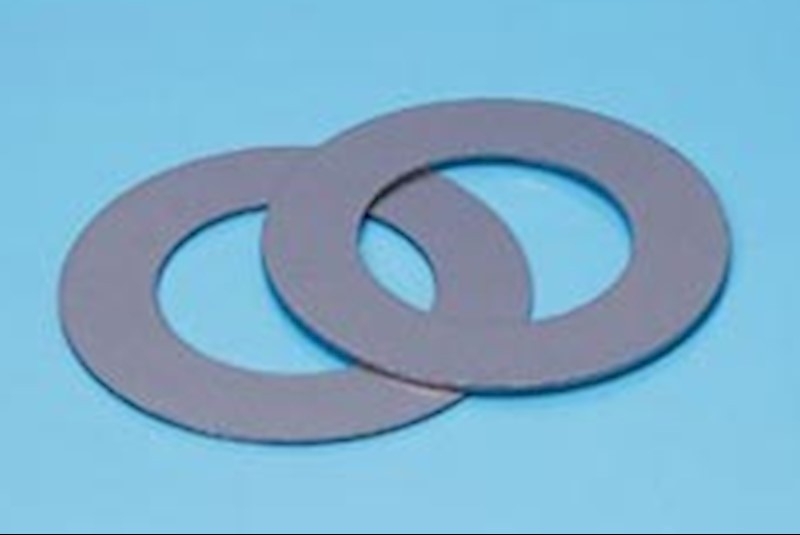

Expanded graphite (GRASEAL™) is produced by subjecting natural high-purity graphite crystal to chemical and heat treatments. It offers outstanding heat resistance, chemical resistance, and flexibility with little creep.

Product Code	Product Name	Description	Application	Data Sheet
Tombo No. 1200	GRASEAL™ gasket	Expanded graphite sheet	Service temp: Oxidizing atm -240 °C ~ 400 °C Non-oxidizing atm -240 °C ~ 800 °C Service pressure: ~ 3.0 MPa	N/A
Tombo No. 1210-A	GRASEAL™ gasket MI-A	Tanged Insert 316 steel	Service temp: Oxidizing atm -240 °C ~ 400 °C Non-oxidizing atm -240 °C ~ 800 °C Service pressure: ~ 5.2 MPa	N/A
Tombo No. 1215 series	GRASEAL™ gasket PM-A	Inserted flat 316 steel	Service temp: Oxidizing atm -240 °C ~ 400 °C Non-oxidizing atm -240 °C ~ 800 °C Service pressure: ~ 5.2 MPa	N/A
Tombo No. 1880-GR	CMGC gasket	Expanded graphite sheet	Service temp: Oxidizing atm -240 °C ~ 400 °C Non-oxidizing atm -240 °C ~ 800 °C Service pressure: ~ 5.2 MPa	N/A
Tombo No. 1220/1221	GRASEAL™ gasket tape (Plane/Crinkle)	Expanded graphite sheet	Service temp: Oxidizing atm -240 °C ~ 400 °C Non-oxidizing atm -240 °C ~ 800 °C Service pressure: ~ 3.0 MPa	N/A
