Jointsheet

Vendor: Update

Contact

Joint sheets are sheet-shaped gasket materials that consist of a fibrous material, a filler, and rubber, offering high flexibility. Machined to the required shapes and dimensions, they are used for piping and equipment.

Product Code	Product Name	Description	Application	Data Sheet

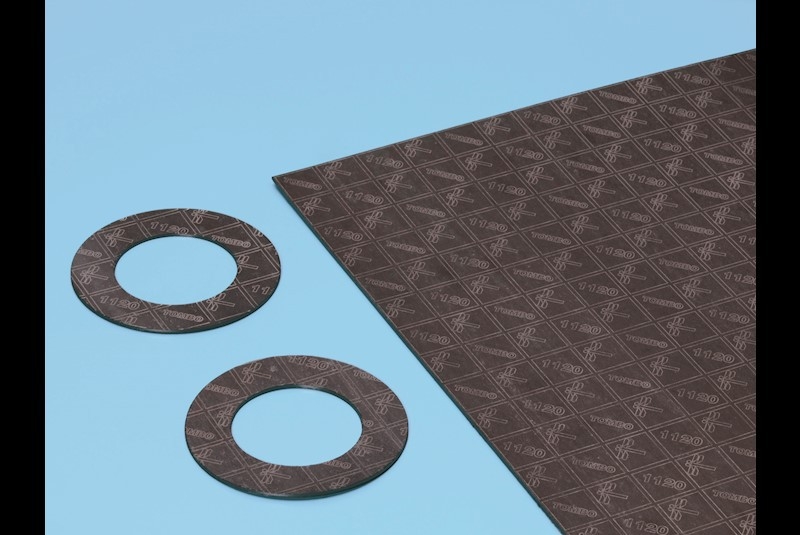

Tombo No. 1120 Tombo No. 1120-LN (used with low-temp fluids)	CLINSIL™Top	Filler: Expanded graphite (with NBR, aramid fibers) Excellent heat resistance, steam resistance and crossion resistance	Can be used with relatively high temp flanges, valves and equipment Service temp: -200°C ~ 260°C Service pressure: 4 MPa	N/A
Tombo No. 1995 Tombo No. 1995-W (CLINSIL™ White)	CLINSIL™Brown	Filler: Non-asbestos inorganic fibres (with NBR, aramid fibers) Superior mechanical strength	Can be used with relatively low temp flanges, valves and equipment Service temp: -100°C ~ 183°C Service pressure: 3 MPa	N/A
Tombo No. 1993	CLINSIL™Super	Filler: Inorganic fibres (with specially blended rubber, aramid fibers) Excellent heat resistance and steam resistance	Service temp: -100°C ~ 215°C Service pressure: 3 MPa	N/A
Tombo No. 1991-NF	CLINSIL™NF	Filler: Special inorganic fibers (with NBR, aramid fibers) Highly resistant to alternative CFCs (chiller compressor)	Service temp: -100°C ~ 180°C Service pressure: 3 MPa	N/A
Tombo No. 1938	CLINSIL™UF	Filler: Special inorganic fibers (with NBR, aramid fibers) High tensile strength ad shearing strength	Service temp: -100°C ~ 100°C Service pressure: 1 MPa	N/A
