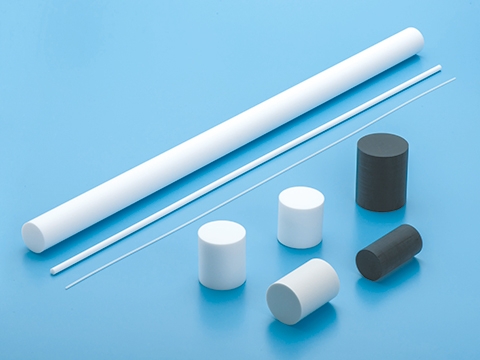

TOMBO™ No. 9002 NAFLON™ PTFE ROD

Specification

NAFLON™ PTFE rod
It is a rod that combines PTFE’s excellent electrical properties, non-adhesiveness, and low friction coefficient.

NAFLON PTFE rod with filler
Abrasion resistance, compressive strength, and dimensional stability are improved by adding various fillers to PTFE.

Application

For connectors, terminals, other electrical components, stopcocks for laboratory equipment, check valve balls, etc.

Type

TOMBO No.	Filler material
9002-G15, 20, 25	Glass fiber (15%, 20%, 25%)
9002-GR15, 30	Graphite (15%, 30%)
9002-GMo	Glass fiber (15%) + molybdenum disulfide (5%)
9002-CF10, 15	Carbon fiber (10%, 15%)
9002-SC	Special carbon
9002-GGR	Glass fiber (20%) + graphite (5%)
9002-BR	Bronze (60%)
9002-SCCF	Special carbon + carbon fiber

*As TOMBO No. 9002-SCCF contains a large amount of filler, if it is used as a glass sealing material, it may leak depending on the conditions of use. If you have any questions about this matter, please contact us.

Standard dimensions

Unit: (mm)
