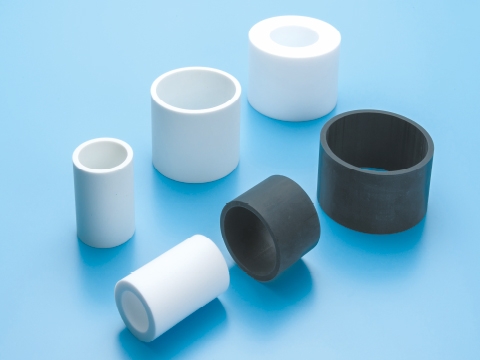

TOMBO™ No. 9008 NAFLON™ PTFE PIPE

Standard

This product is compliant with JIS K6897.

Standard dimension

Unit: (mm)

Length	Outside diameter
100	20 to 1115

*If you would like to know the dimensions of the product with a filler material, please contact us.
*If you inform us of the final product, we will select the optimum material dimensions for you.

NAFLON PTFE pipe with filler and types and applications

Unit: (mm)

TOMBO No.	Filler Material	Application
9008-G15 G20 G25	Glass fiber (15%, 20%, 25%)	Packings, bearings, piston rings, mechanical parts, electrical insulators, etc.
9008-GGR	Glass fiber, graphite	No-lubrication bearings, piston rings, valve seats, etc.
9008-GMo	Glass fiber, molybdenum disulfide	Bearings, etc.
9008-BR	Bronze	High-speed bearings, mechanical parts, etc.
9008-SC	Special carbon	Gaskets, valve discs, valve seats, mechanical parts (for hydrofluoric acid applications), etc.
9008-GR15 GR30	Graphite	Bearings, piston rings, mechanical seals
9008-CF10 CF15	Carbon fiber	Valve seats, valve disks, bearings, etc.
9008-SCCF	Special carbon, carbon fiber	Valve seats, valve disks, etc.

*As TOMBO No. 9008-SCCF contains a large amount of filler, if it is used as a gas sealing material, it may leak depending on the conditions of use. If you have any questions about this matter, please contact us.
