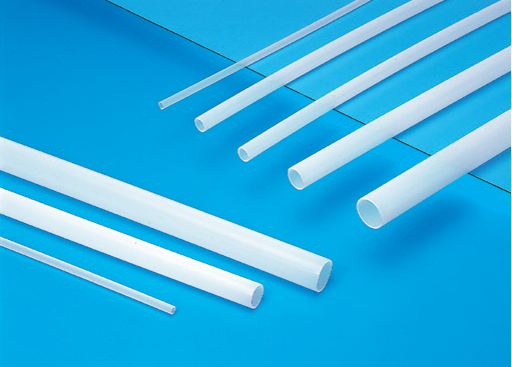

TOMBO™ No. 9003-PFA-HG NAFLON™ PFA HG TUBE

Forte

In addition to conventional PFA tube performance, it has the following features:

It has a smooth inner tube surface (Rt = 0.2μm*).

Reduced particle and chemical solution residue
Reduced cleaning up (cleaning time)
Reduced chemical solution ingress due to a smaller inner surface volume of the tube
Increased transparency
Increased dielectric strength
*These values are our actual measurement values. They are not standard values.

It uses a new-PFA raw material.

Reduced fluorine ion elution
Improved stress crack resistance in stress environments
(e.g. piranha solution, oleum)

Product specification

In millimeter

Nominal dimensions (mm)	Outside diameter (mm)		Thickness (mm)		Length (m)
Inside diameter x Outside diameter	Standard dimensions	Tolerance	Standard dimensions	Tolerance	Standard dimensions	Tolerance
2×4	4.0	±0.10	1.0	±0.06	10,50	+1% -0%
3×4	4.0		0.5	±0.05
4×6	6.0		1.0	±0.06
6×8	8.0	±0.12	1.0	±0.06
8×10	10.0		1.0	±0.06
10×12	12.0		1.0	±0.06
16×19	19.0		1.5	±0.10
22×25	25.0	±0.15	1.5	±0.10

*Please confirm the delivery date (availability of stock).

The burst pressure at room temperature and the minimum bending radius are the same as the NAFLON PFA Tube.

Size in inches

In millimeter

Nominal dimensions (mm)	Outside diameter (mm)		Thickness (mm)		Length (m)
Inside diameter x Outside diameter	Standard dimensions	Tolerance	Standard dimensions	Tolerance	Standard dimensions	Tolerance
2.17×3.17	3.17	±0.10	0.50	±0.05	10,50	+1% -0%
3.96×6.35	6.35		1.20	±0.10
4.35×6.35	6.35		1.00	±0.06
6.35×9.52	9.52	±0.12	1.59	±0.10
7.52×9.52	9.52		1.00	±0.06
9.52×12.70	12.70		1.59	±0.10
15.88×19.05	19.05		1.59	±0.10
22.22×25.40	25.40	±0.15	1.59	±0.10

Please confirm the delivery date (availability of stock).
The burst pressure at room temperature and the minimum bending radius are the same as the NAFLON PFA Tube.
