Application
General insulation
Insulation lining material and backup material for the ceilings of kilns and furnace walls
Expansion allowance filler for each part within a furnace
Heat sealing material for gas supply equipment
Heat sealing material for combustors
Product lineup and quality characteristics
FINEFLEX BIO™ Paper A TOMBO No. 5635-A
FINEFLEX BIO Paper A is a product that adds a small number of organic binders to FINEFLEX BIO Bulk and is manufactured into a paper form with the use of a paper manufacturing machine. It is a general-use product that withstands hot temperatures and has excellent machinability such as for cutting and punching.
Standard dimensions
| Thickness (mm) | Width x length (mm) |
| 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0, 6.0 | 600×1200 |
*Feel free to contact us about other sizes.
Quality characteristics
| Item | Quality characteristics | ||
| Color | White | ||
| Density (kg/m3) | Thickness | 0.5, 1.0mm |
240 |
| 1.5 ~ 3.0mm | 250 | ||
| 4.0 ~ 6.0mm | 240 | ||
| Maximum heat resistant temperature (°C) | 1300 | ||
| Tensile strength (N/25mm) | 58 | ||
| Ignition loss (%) | 4 | ||
*The values above are our actual measurement values. They are not standard values.
*The binder may die out after heating and the product’s ability to maintain its shape may be reduced.
*The tensile strength is the typical measured value for 3 mm thickness product.
*Please use ventilation system to avoid gas and odors during the initial heating process.
FINEFLEX BIO™ Paper M TOMBO No. 5635-R
FINEFLEX BIO Paper R is a product that adds a small number of organic binders to FINEFLEX BIO Bulk and amorphous inorganic fiber and is manufactured into a paper form with the use of a paper manufacturing machine. It is a product with excellent tensile strength, flexibility, and sealing properties
Standard dimensions
| Thickness (mm) | Width x length (mm) |
| 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0, 6.0 | 600×1200 |
*Feel free to contact us about other sizes.
Quality characteristics
| Item | Quality characteristics | ||
| Color | White to light brown | ||
| Density (kg/m3) | Thickness | 0.5, 1.0mm |
240 |
| 1.5 ~ 3.0mm | 250 | ||
| 4.0 ~ 6.0mm | 240 | ||
| Maximum heat resistant temperature (°C) | 800 | ||
| Tensile strength (N/25mm) | 100 | ||
| Ignition loss (%) | 7 | ||
*The values above are our actual measurement values. They are not standard values.
*The binder may die out after heating and the product’s ability to maintain its shape may be reduced.
*The tensile strength is the typical measured value for 3 mm thickness product.
*Please use ventilation system to avoid gas and odors during the initial heating process.
FINEFLEX BIO™ Paper M TOMBO No. 5635-M
FINEFLEX BIO Paper M is a product that adds a small number of binders to FINEFLEX BIO Bulk and amorphous inorganic fiber and is manufactured into a paper form with the use of a paper manufacturing machine. It is a product with little odor when fired.
Standard dimensions
| Thickness (mm) | Width x length (mm) |
| 1.0, 2.0, 3.0, 4.0 | 600×1200 |
Quality characteristics
| Item | Quality characteristics | ||
| Color | White to light brown | ||
| Density (kg/m3) | 240 | ||
| Maximum heat resistant temperature (°C) | 800 | ||
| Tensile strength (N/25mm) | 100 | ||
| Ignition loss (%) | 7 | ||
*The values above are our actual measurement values. They are not standard values.
*The binder may die out after heating and the product’s ability to maintain its shape may be reduced.
*The tensile strength is the typical measured value for 3 mm thickness product.
*Please use ventilation system to avoid gas and odors during the initial heating process.
Others

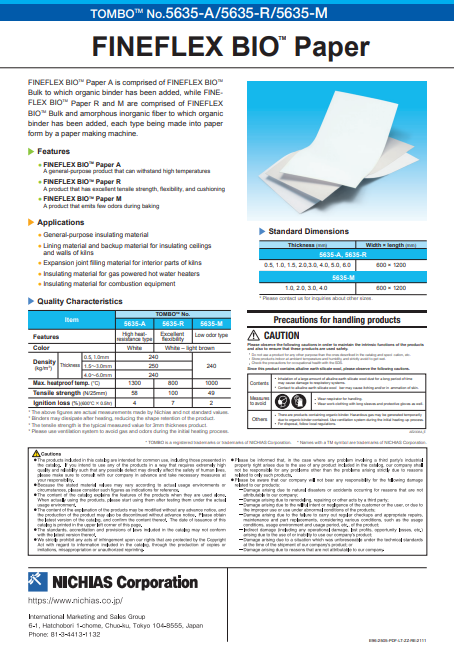

Download catalog
