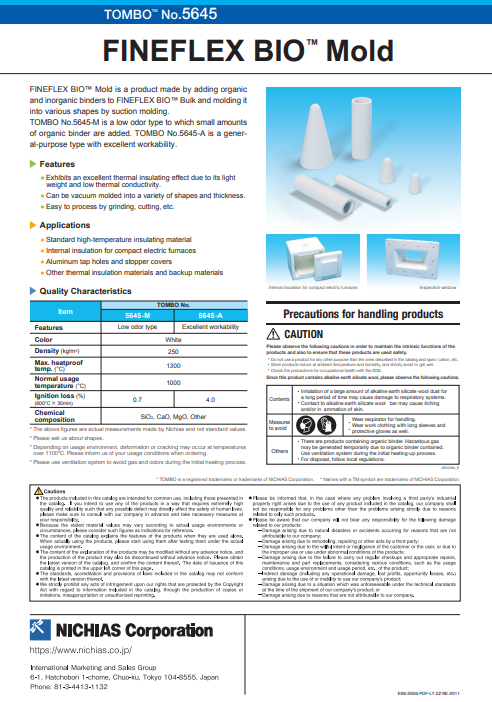

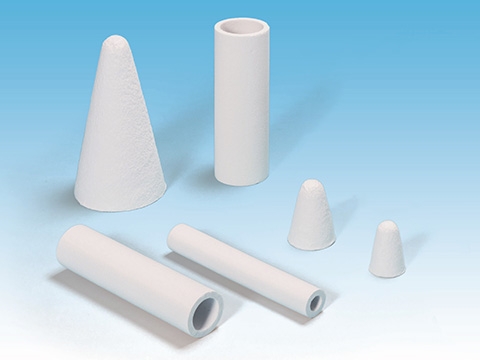

TOMBO™ No. 5645 FINEFLEX BIO™ Mold

Forte

A product made of alkali earth silicate (AES) wool that does not apply to OPHSCS.
It is lightweight and has a low thermal conductivity, and so it displays excellent insulation performance.
It is relatively easy to select a shape and thickness.
It can easily be machined such as for grinding and cutting.

Application

General high-temperature insulation
Insulation for the inside of compact electric furnaces
Aluminum tap hole and stopper cover
other thermal and heat insulation materials and backup materials

Quality characteristics

Item		TOMBO No.
		5645-M	5645-A
Features		Minimal odor type	It offers excellent machinability
Color		White
Density (kg/m3)		250
Maximum heat resistant temperature (°C)		1300
Regular working temperature (°C)		1000
Bending strength (MPa)	Normal state	0.2	0.5
Ignition loss (%)		0.7	4.0
Chemical components		SiO2, CaO + MgO, other

*The values above are our actual measurement values. They are not standard values.
*Please contact us if you have any questions about the shape.
*Depending on the usage environment, the product may crack and warp at a temperature of 1100°C or more.
*Please use ventilation system to avoid gas and odors during the initial heating process.
When ordering, please inform us of your usage conditions.
