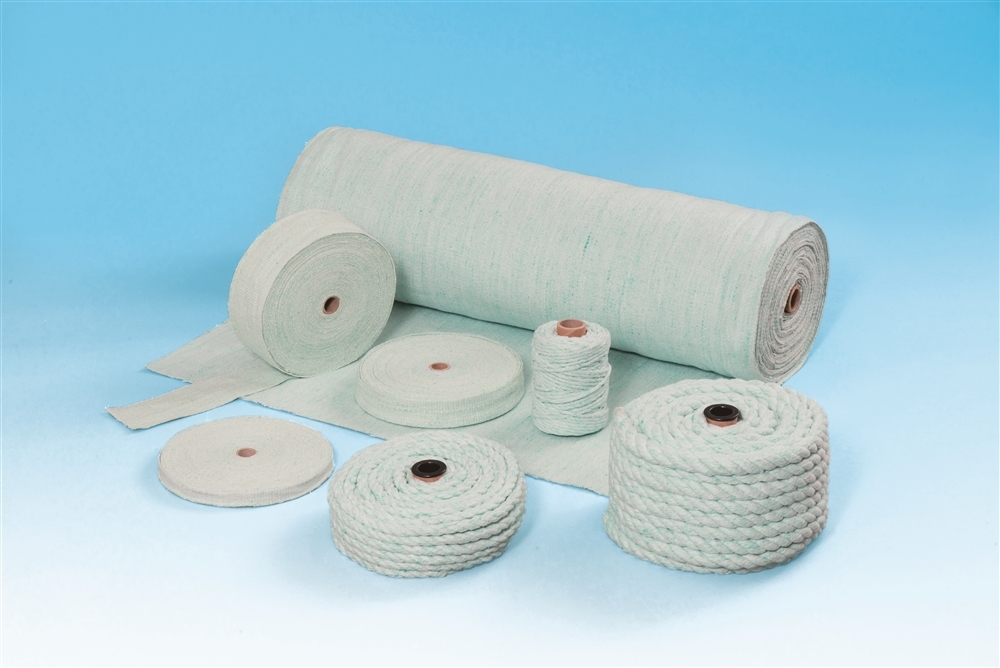

Forte
It offers excellent heat resistance.
It has a low thermal conductivity rate and so it displays excellent insulation performance.
It stores little heat and so can reduce the heat storage loss on furnace walls.
It offers excellent thermal shock resistance.
The product is lightweight and so it is easy to handle.
Application
Furnace heating zone separators and curtains, and covers for thermocouple lead wires
Sealing around furnace doors and burners
Quality characteristics
Width: 1, 000 mm, Length: 30 m
| Type | Reinforcement wire | Weave | Density (roll/25mm) | Thickness (mm) | Weight (kg/m2) |
| Cloth (TOMBO No. 5685-A) |
Stainless steel wire Iron chrome wire |
Plain weave | Vertical = 13, Horizontal = 7 | 2 | 1.1 |
| Type | Reinforcement wire | Thickness (mm) | Width (mm) | Length (m) |
| Tape (TOMBO No. 5685-B) |
Stainless steel wire |
2 | 25, 38, 50, 65, 75, 100 | 30 |
| Type | Reinforcement wire | Diameter (mm) | Length/ weight |
| Cord (TOMBO No. 5685-C) |
Iron chrome wire |
3.2 to 4.8 | 1kg/ roll |
| Type | Reinforcement wire | Diameter (mm) | Length (m) |
| Twisted Rope (TOMBO No. 5685-D) |
Glass yarn |
6.4 to 25.4 | 30 |
| Type | Reinforcement wire | Diameter (mm) | Length (m) |
| Braided Rope (TOMBO No. 5685-E) |
Stainless stell wire Glass yarn |
15 to 60 80 100 120 |
30 20 10 5 |
*The values above are our actual measurement values. They are not standard values.
*Please use ventilation system to avoid gas and odors during the initial heating process.
