TOMBO™ No. 5675 FINEFLEX BIO™ CAST

Paste-form amorphous fire-resistant material

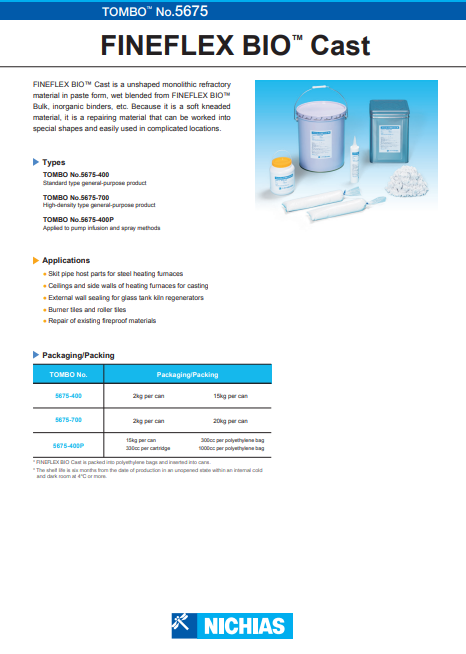

TOMBO™ No. 5675

FINEFLEX BIO™ CAST

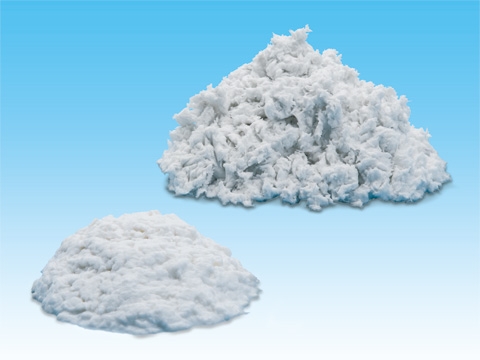

FINEFLEX BIO CAST is a monolithic refractory material in paste form that is made by wet-mixing FINEFLEX BIO Bulk and inorganic binders, etc. It is a repair material that can be easily installed to unique shapes and complex parts due to being a soft, kneaded material.
TOMBO No.5675-400 A standard general-use product.
TOMBO No.5675-700 A high-density, general-use product.
TOMBO No.5675-400P Suitable for pumping and spraying construction methods.

Application

Heating furnace skid pipe host for steel
Casting heating furnace ceilings and side walls
Outer wall sealing for glass tank kiln chamber
Burner tiles and roller tiles
Repairing of existing heat resistance material

Quality characteristics

Item		Tombo No.
Item		5675-400	5675-700	5675-400P
Application		General-use product (Standard type)	General-use product (High-density type)	For pump installation
Maximum heat resistant temperature (°C)		1300	1300	1300
Color		White to pale white	White to pale white	White to pale white
Density (kg/m3)	Normal stage (before drying)	1160	1320	1160
Density (kg/m3)	After drying at 105°C	450	750	480
Heat shrinkage rate (%)	1200°C x 24h	2.0	2.0	2.0
Bending strength (MPa)	After drying at 105°C	0.5	0.9	0.8
Bending strength (MPa)	1200°C x 24h	0.4	0.8	0.4

*The values above are actual values measured by Nichias. They are not standard values.
*Thermal conductivity differs according to the installation state.
*Please use ventilation system to avoid gas and odors during the initial heating process.

Packaging and quantity

TOMBO No.	Packing & Packing method
5675-400	Contains 2 kg/can	Contains 15 kg/can
5675-700	Contains 2 kg/can	Contains 20 kg/can
5675-400P	Contains 15 kg/can	330 cc / cartridge
5675-400P	300 cc/plastic bag	1000 cc/plastic bag
